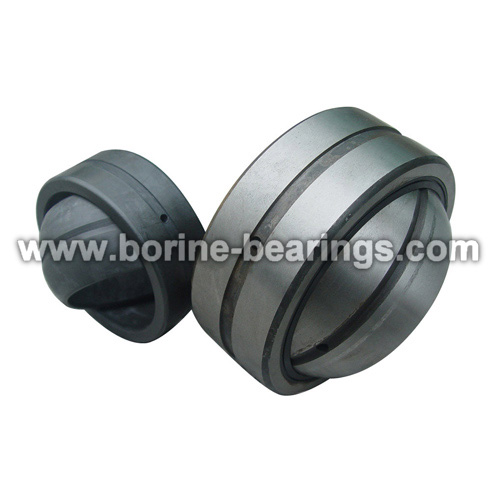

GE..LO series

Product Name: GE..LO series

Product Details: GE..LO series

Spherical Plain Bearing is designed can bear radial loading,axial loading and combine loading.As the outer spherical raceway is inlaid some composite,so bearing can self-lubricate.It is supplied for the situation of low-speed swing.
Radial Spherical Plain Bearings
GE..LO series
◆ Out ring with single splitin axial direction
◆ Inner Ring with Cylindrical Extensions at both sides.
◆ Lubricating groove and holes in the Outer and Inner rings
◆ Both Outer Ring and Inner Ring are properly phosphate treated.

Bearing No.	Dimensions (mm)							Load Rating (KN)		Wt.
Bearing No.	d	d2	D	B	C	dk	α	Cr	cor	(kg)
GE 12 LO	12	15.5	22	12	7	18	4	10	54	0.022
GE 16 LO	16	20	28	16	9	23	4	17.6	88	0.035
GE 20 LO	20	25	35	20	12	29	4	30	146	0.070
GE 25 LO	25	30.5	42	25	16	35.5	4	48	240	0.120
GE 30 LO	30	34	47	30	18	40.7	4	62	310	0.168
GE 32 LO	32	37	52	32	18	44	4	67	335	0.200
GE 35 LO	35	40	55	35	20	47	4	79	399	0.253
GE 40 LO	40	46	62	40	22	53	4	100	500	0.340
GE 45 LO	45	52	68	45	25	60	4	127	637	0.481
GE 50 LO	50	57	75	50	28	66	4	156	780	0.560
GE 60 LO	60	68	90	60	36	80	4	245	1220	1.150
GE 63 LO	63	71.5	95	63	36	83	4	255	1270	1.200
GE 70 LO	70	78	105	70	40	92	4	315	1560	1.700
GE 80 LO	80	91	120	80	45	105	4	400	2000	2.400
GE 90 LO	90	99	130	90	50	115	4	488	2440	3.200
GE 100 LO	100	113	150	100	55	130	4	607	3030	4.800
GE 110 LO	110	124	160	110	55	140	4	654	3270	5.780
GE 125 LO	125	138	180	125	70	160	4	950	4750	8.490
GE 160 LO	160	177	230	160	80	200	4	1360	6800	16.500
GE 200 LO	200	221	290	200	100	250	4	2120	10600	32.100
