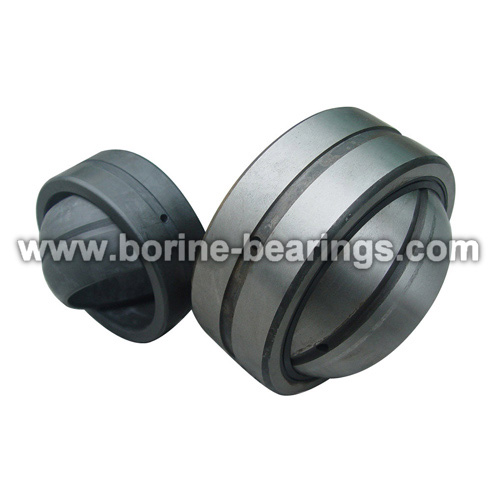

GE..UK series

Product Name: GE..UK series

Product Details: GE..UK series

Spherical Plain Bearing is designed can bear radial loading,axial loading and combine loading.As the outer spherical raceway is inlaid some composite,so bearing can self-lubricate.It is supplied for the situation of low-speed swing.
Radial Spherical Plain Bearings
GE..UK series
◆ Outer rings be pressed around Inner rings.
◆ Outer races lined with PTFE composite material.
◆ Spherical surface of Inner ring Chromium Plated.

Bearing No.	Dimensions (mm)							Load Rating (KN)		Wt.
Bearing No.	d	D	B	C	d1	dk	α(o)	Cr	Cor	(kg)
GE 6 UK	6	14	6	4	8	10	13	3.6	9.1	0.004
GE 8 UK	8	16	8	5	10	13	15	5.8	14	0.008
GE 10 UK	10	19	9	6	13	16	12	8.6	21	0.011
GE 12 UK	12	22	10	7	15	18	10	11	28	0.015
GE 15 UK	15	26	12	9	18	22	8	18	45	0.027
GE 17 UK	17	30	14	10	20	25	10	22	56	0.041
GE 20 UK	20	35	16	12	24	29	9	31	78	0.066
GE 25 UK	25	42	20	16	29	35.5	7	51	127	0.119
GE 30 UK	30	47	22	18	34	40.7	6	65	166	0.163
