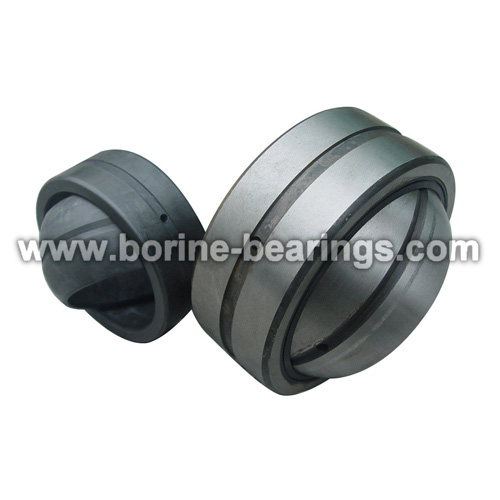

GE..ES, GE..ES-2RS series

Product Name: GE..ES, GE..ES-2RS series

Product Details: GE..ES, GE..ES-2RS series

Spherical Plain Bearing is designed can bear radial loading,axial loading and combine loading.As the outer spherical raceway is inlaid some composite,so bearing can self-lubricate.It is supplied for the situation of low-speed swing.
Radial Spherical Plain Bearings
GE..E(S), GE..ES-2RS
◆ Out ring with single splitin axial direction
◆ Lubricating groove and holes in the Outer and Inner rings of type ES.
◆ Outer ring of type -2RS with Lip Seals in both sides.
◆ Both Outer Ring and Inner Ring are properly phosphate treated.

Bearing No.		Diamensions (mm)						Load Rating (KN)		Wt.
Bearing No.		d	D	B	C	dk	α (o)	Cr	Cor	(kg)
GE 5 E		5	14	6	4	10	13	3.4	17	0.005
GE 6 E		6	14	6	4	10	13	3.4	17	0.004
GE 8 E		8	16	8	5	13	15	5.5	27.5	0.007
GE 10 E		10	19	9	6	16	12	8.15	40.5	0.011
GE 12 E		12	22	10	7	18	11	10.8	54	0.016
GE 15 ES	GE 15 ES-2RS	15	26	12	9	22	8	17	85	0.025
GE 16 ES	GE 16 ES-2RS	16	30	14	10	25	10	21.2	106	0.041
GE 17 ES	GE 17 ES-2RS	17	30	14	10	25	10	21.2	106	0.041
GE 20 ES	GE 20 ES-2RS	20	35	16	12	29	9	30	146	0.061
GE 25 ES	GE 25 ES-2RS	25	42	20	16	35.5	7	48	240	0.110
GE 30 ES	GE 30 ES-2RS	30	47	22	18	40.7	6	62	310	0.140
GE 35 ES	GE 35 ES-2RS	35	55	25	20	47	6	80	400	0.220
GE 40 ES	GE 40 ES-2RS	40	62	28	22	53	7	100	500	0.300
GE 45 ES	GE 45 ES-2RS	45	68	32	25	60	7	127	640	0.410
GE 50 ES	GE 50 ES-2RS	50	75	35	28	66	6	156	780	0.530
GE 55 ES	GE 55 ES-2RS	55	85	40	32	74	7	200	1000	0.940
GE 60 ES	GE 60 ES-2RS	60	90	44	36	80	6	245	1220	1.000
GE 70 ES	GE 70 ES-2RS	70	105	49	40	92	6	315	1560	1.500
GE 80 ES	GE 80 ES-2RS	80	120	55	45	105	6	400	2000	2.200
GE 90 ES	GE 90 ES-2RS	90	130	60	50	115	5	490	2450	2.700
GE 100 ES	GE 100 ES-2RS	100	150	70	55	130	7	610	3050	4.300
GE 110 ES	GE 110 ES-2RS	110	160	70	55	140	6	655	3250	4.700
GE 120 ES	GE 120 ES-2RS	120	180	85	70	160	6	950	4750	8.000
GE 140 ES	GE 140 ES-2RS	140	210	90	70	180	7	1080	5400	11.000
GE 160 ES	GE 160 ES-2RS	160	230	105	80	200	8	1360	6800	14.000
GE 180 ES	GE 180 ES-2RS	180	260	105	80	225	6	1530	7650	18.500
