GE..HO-2RS series

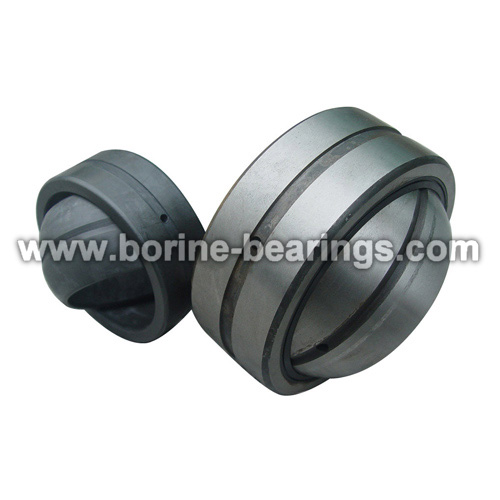

Product Name: GE..HO-2RS series

Product Details: GE..HO-2RS series

Spherical Plain Bearing is designed can bear radial loading,axial loading and combine loading.As the outer spherical raceway is inlaid some composite,so bearing can self-lubricate.It is supplied for the situation of low-speed swing.
Radial Spherical Plain Bearings
GE..HO-2RS
◆ Out ring with single splitin axial direction
◆ Inner Ring with Cylindrical Extensions at both sides.
◆ Lubricating groove and holes in the Outer and Inner rings
◆ Outer Rings with Lip Sealsin both sides.
◆ Both Outer Ring and Inner Ring are properly phosphate treated.

Bearing No.	Dimensions (mm)							Load Rating (KN)		Wt.
Bearing No.	d	d2	D	B	C	dk	α	Cr	cor	(kg)
GE 17 HO-2RS	17	21	30	21	10	25	3	21.2	106	0.040
GE 20 HO-2RS	20	24	35	24	12	29	3	30	146	0.069
GE 25 HO-2RS	25	29	42	29	16	35.5	3	48	240	0.120
GE 30 HO-2RS	30	34	47	30	18	40.7	3	62	310	0.150
GE 35-HO 2RS	35	40	55	35	20	47	3	80	400	0.260
GE 40 HO-2RS	40	45	62	38	22	53	3	100	500	0.320
GE 45 HO-2RS	45	52	68	40	25	60	3	127	640	0.430
GE 50 HO-2RS	50	57	75	43	28	66	3	156	780	0.550
GE 60 HO-2RS	60	68	90	54	36	80	3	245	1220	1.100
GE 70 HO-2RS	70	78	105	65	40	92	3	315	1560	1.600
GE 80 HO-2RS	80	90	120	74	45	105	3	400	2000	2.500
