China Disc Harrow Bearings-Square Bore, Non-relubricable series,Disc Harrow Bearings-Square Bore, Non-relubricable series M...

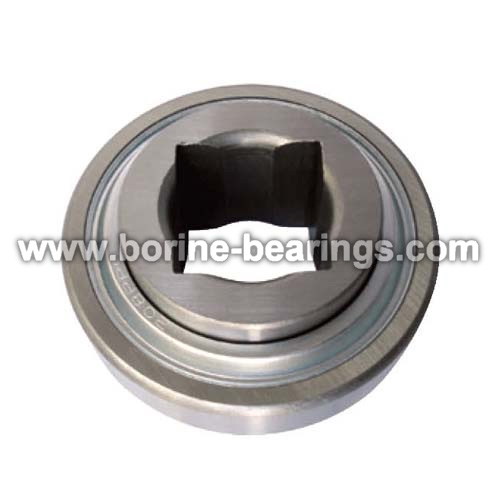

Heavy Duty Disc Harrow Bearings are made with triple lip seals to protect from corrosive invironments.This seals is a one piece shroud cover with three molded contact seals.
This inner ring is with Square Bore, and lubricated for life.
Disc Harrow Bearings
Square Bore, Non-relubricable Series

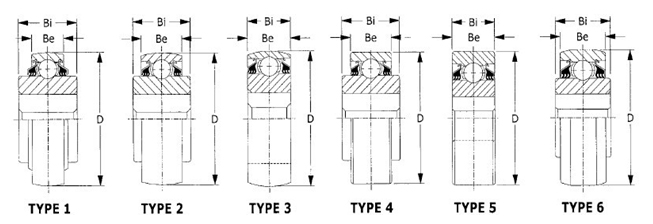

| Square Bore | ||||||||||||
| Part No. | Type | Shaft Size |
Outside Diameter D |
Out Ring Width Be |
Inner Ring Width Bi |
Load Ratings | Wt. | |||||
| Cr | Cor | |||||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | Ibf. | Ibf. | Ibs. | ||
| W 208 PP5 | 4 | 1 1/8 | 28.575 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.50 |
| W 208 PPB5 | 1 | 1 1/8 | 28.575 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.47 |
| W 208 PP6 | 4 | 1 | 25.400 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.62 |
| W 208 PPB6 | 1 | 1 | 25.400 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.59 |
| W 208 PP8 | 4 | 1 1/8 | 28.575 | 3.1496 | 80.000 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.66 |
| W 208 PPB8 | 2 | 1 1/8 | 28.575 | 3.1496 | 80.000 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.66 |
| W 208 PPB9 | 2 | 1 | 25.400 | 3.1496 | 80.000 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.74 |
| W 208 PPB11 | 6 | 7/8 | 22.225 | 3.3760 | 85.750 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 2.05 |
| W 208 PPB12 | 6 | 1 1/8 | 28.575 | 3.3760 | 85.750 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.62 |
| W 208 PPB13 | 1 | 7/8 | 22.225 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.62 |
| W 209 PPB5 | 2 | 1 1/4 | 31.750 | 3.3465 | 85.000 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,350 | 4,150 | 1.75 |
| W 209 PPB7 | 6 | 1 1/4 | 31.750 | 3.3760 | 85.750 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,350 | 4,150 | 1.80 |
| W 210 PP4 | 5 | 1 1/8 | 28.575 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.92 |
| W 210 PPB4 | 3 | 1 1/8 | 28.575 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 2.11 |
| W 210 PPB6 | 2 | 1 1/8 | 28.575 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.4380 | 36.520 | 7,880 | 4,650 | 2.11 |
| W 211 PP3 | 5 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.79 |
| W 211 PPB3 | 3 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.66 |
| W 211 PP5 | 4 | 1 1/2 | 38.100 | 4.0000 | 101.600 | 1.4380 | 36.525 | 1.7500 | 44.450 | 9,740 | 5,850 | 3.38 |
| W 211 PPB6 | 6 | 1 1/2 | 38.100 | 4.0770 | 103.556 | 1.4380 | 36.525 | 1.7500 | 44.450 | 9,740 | 5,850 | 4.05 |
