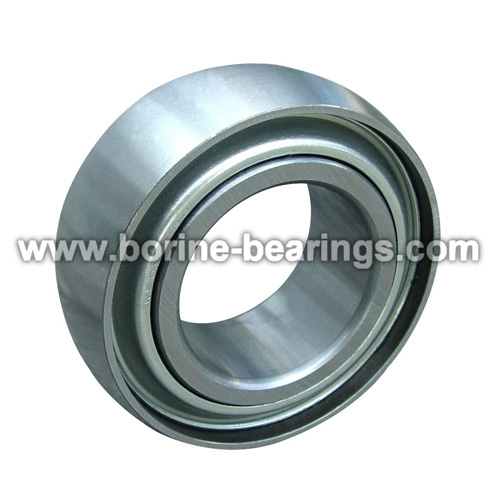

China Disc Harrow Bearings-Round Bore, Non-relubricable series,Disc Harrow Bearings-Round Bore, Non-relubricable series Ma...
| Round Bore | ||||||||||||

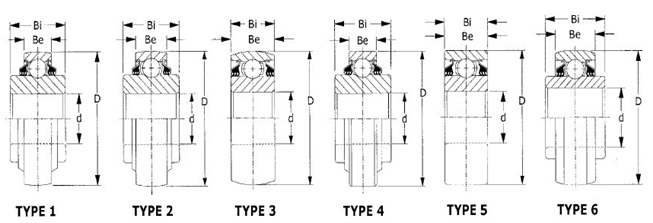

| Part No. | Type | Bore d |
Outside Diameter D |
Out Ring Width Be |
Inner Ring Width Bi |
Load Ratings | Wt. | |||||
| Cr | Cor | |||||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | Ibf. | Ibf. | Ibs. | ||
| W 208 PPB2 | 1 | 1.5005 | 38.113 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.6880 | 42.875 | 7,340 | 3,650 | 1.59 |
| W 208 PPB7 | 2 | 1.1880 | 30.175 | 3.1496 | 80.000 | 0.7090 | 18.000 | 1.1880 | 30.175 | 7,340 | 3,650 | 1.41 |
| W 208 PP10 | 4 | 1.5005 | 38.113 | 3.1496 | 80.000 | 0.8270 | 21.000 | 1.6880 | 42.875 | 7,340 | 3,650 | 1.50 |
| W 208 PPB10 | 1 | 1.5005 | 38.113 | 3.1496 | 80.000 | 0.8270 | 21.000 | 1.6880 | 42.875 | 7,340 | 3,650 | 1.59 |
| W 208 PPB23 | 2 | 1.5005 | 38.113 | 3.1496 | 80.000 | 1.1880 | 30.175 | 1.6880 | 42.875 | 7,340 | 3,650 | 1.50 |
| W 209 PPB2 | 3 | 1.7717 | 45.000 | 3.3460 | 85.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,350 | 4,150 | 1.45 |
| W 209 PPB4 | 3 | 1.5350 | 39.000 | 3.3460 | 85.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,350 | 4,150 | 1.65 |
| W 210 PP2 | 5 | 1.9380 | 49.225 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.69 |
| W 210 PPB2 | 3 | 1.9380 | 49.225 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.56 |
| W 210 PPB5 | 3 | 1.7850 | 45.339 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.75 |
| W 210 PP8 | 5 | 1.5300 | 38.862 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.97 |
| W 210 PPB9 | 2 | 1.9448 | 49.400 | 3.5433 | 90.000 | 0.9055 | 23.000 | 1.4382 | 36.530 | 7,880 | 4,650 | 1.91 |
| W 211 PP2 | 5 | 2.1880 | 55.575 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.33 |
| W 211 PPB2 | 3 | 2.1880 | 55.575 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 3.00 |
| W 211 PPB4 | 6 | 2.1880 | 55.575 | 3.9370 | 100.000 | 1.3120 | 33.325 | 2.1870 | 55.500 | 9,740 | 5,850 | 3.63 |
| W 214 PP2 | 5 | 2.7559 | 70.000 | 4.9213 | 125.000 | 1.5620 | 39.675 | 1.5620 | 39.675 | 14,000 | 8,800 | 4.19 |
| W 214 PPB2 | 3 | 2.7559 | 70.000 | 4.9213 | 125.000 | 1.5620 | 39.675 | 1.5620 | 39.675 | 14,000 | 8,800 | 3.96 |
| W 214 PPB9 | 2 | 2.7660 | 70.256 | 4.9213 | 125.000 | 1.1020 | 28.000 | 1.7500 | 44.450 | 14,000 | 8,800 | 3.96 |
