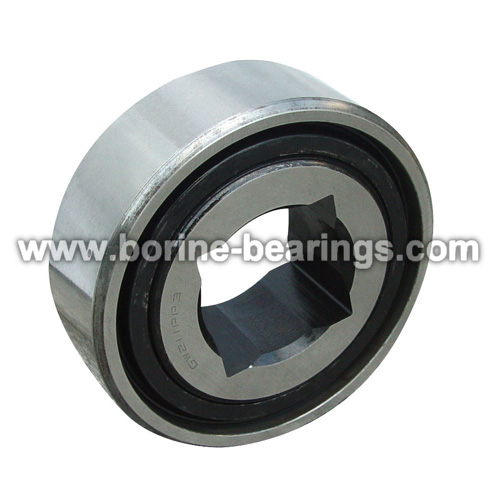

China Disc Harrow Bearings-Square Bore, Relubricable series,Disc Harrow Bearings-Square Bore, Relubricable series Manufact...
| Square Bore | ||||||||||||

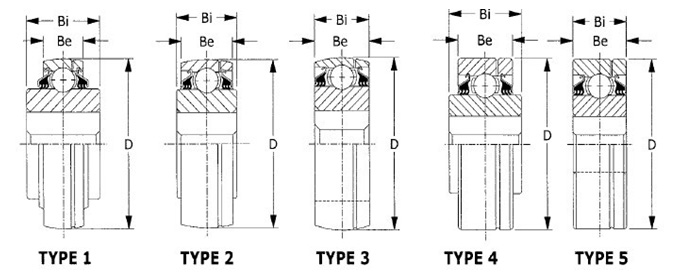

| Part No. | Type | Shaft Size | Outside Diameter D |
Out Ring Width Be |
Inner Ring Width Bi |
Load Ratings | Wt. | |||||
| Cr | Cor | |||||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | Ibf. | Ibf. | Ibs. | ||
| GW 208 PPB5 | 1 | 1 1/8 | 28.575 | 3.1496 | 80.000 | 0.8270 | 21.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.47 |
| GW 208 PPB6 | 1 | 1 | 25.400 | 3.1496 | 80.000 | 0.8270 | 21.000 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.75 |
| GW 208 PPB8 | 2 | 1 1/8 | 28.575 | 3.1496 | 80.000 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 1.75 |
| GW 208 PP17 | 4 | 1 1/8 | 28.575 | 3.3755 | 85.738 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 2.04 |
| GW 208 PPB17 | 2 | 1 1/8 | 28.575 | 3.3750 | 85.738 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,340 | 3,650 | 2.04 |
| GW 209 PPB5 | 2 | 1 1/4 | 31.750 | 3.3465 | 85.000 | 1.1880 | 30.175 | 1.4380 | 36.525 | 7,350 | 4,150 | 1.75 |
| GW 209 PPB8 | 1 | 1 1/4 | 31.750 | 3.3465 | 85.000 | 0.8660 | 22.000 | 1.4380 | 36.525 | 7,350 | 4,150 | 1.65 |
| GW 210 PP4 | 5 | 1 1/8 | 28.575 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 2.31 |
| GW 210 PPB4 | 3 | 1 1/8 | 28.575 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.75 |
| GW 211 PP3 | 5 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.79 |
| GW 211 PPB3 | 3 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.66 |
| GW 211 PP5 | 4 | 1 1/2 | 38.100 | 4.0000 | 101.600 | 1.4380 | 36.525 | 1.7500 | 44.450 | 9,740 | 5,850 | 2.69 |
| GW 211 PP17 | 4 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.7500 | 44.450 | 9,740 | 5,850 | 2.62 |
| GW 211 PPB17 | 1 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.7500 | 44.450 | 9,740 | 5,850 | 2.55 |
| GW 211 PP27 | 1 1/2 | 38.100 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.5310 | 38.887 | 9,740 | 5,850 | 2.30 | |
| GW 214 PPB4 | 3 | 2 | 50.800 | 4.9213 | 125.000 | 1.5620 | 39.675 | 1.5620 | 39.675 | 14,000 | 8,800 | 4.75 |
