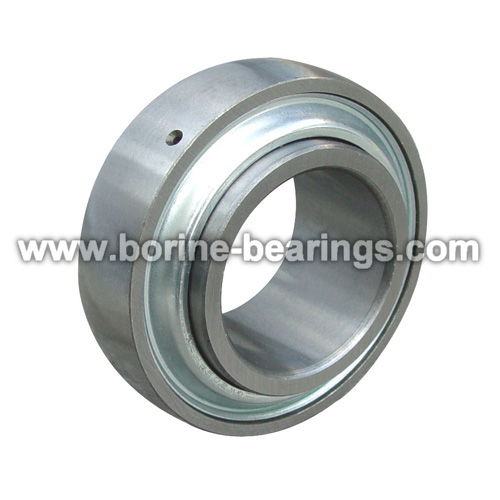

China Disc Harrow Bearings-Round Bore, Relubricable series,Disc Harrow Bearings-Round Bore, Relubricable series Manufactur...
| Round Bore | ||||||||||||

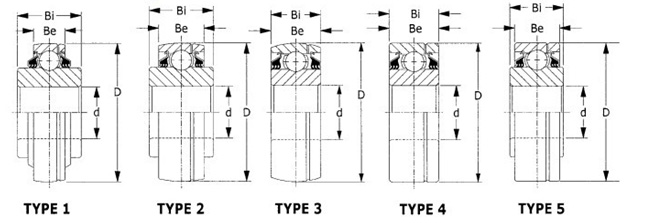

| Part No. | Type | Bore d |
Outside Diameter D |
Out Ring Width Be |
Inner Ring Width Bi |
Load Ratings | Wt. | |||||
| Cr | Cor | |||||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | Ibf. | Ibf. | Ibs. | ||
| GW 209 PPB2 | 3 | 1.7717 | 45.000 | 3.3456 | 85.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,350 | 4,150 | 1.44 |
| GW 209 PPB4 | 3 | 1.5350 | 39.000 | 3.3456 | 85.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,350 | 4,150 | 1.65 |
| GW 209 PPB11 | 1 | 1.7810 | 45.237 | 3.3456 | 85.000 | 0.8660 | 22.000 | 1.4380 | 36.525 | 7,350 | 4,150 | 1.37 |
| GW 210 PP3 | 4 | 1.4065 | 37.530 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 9,000 | 5,200 | 2.25 |
| GW 210 PPB2 | 3 | 1.9380 | 49.225 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.50 |
| GW 210 PPB5 | 3 | 1.7850 | 45.339 | 3.5433 | 90.000 | 1.1880 | 30.175 | 1.1880 | 30.175 | 7,880 | 4,650 | 1.80 |
| GW 210 PP9 | 5 | 1.9450 | 49.403 | 3.5433 | 90.000 | 0.9060 | 23.000 | 1.4380 | 36.525 | 7,880 | 4,650 | 1.75 |
| GW 211 PP2 | 4 | 2.1880 | 55.575 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 3.00 |
| GW 211 PPB2 | 3 | 2.1880 | 55.575 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.62 |
| GW 211 PPB8 | 1 | 2.1880 | 55.575 | 3.9370 | 100.000 | 0.9840 | 25.000 | 1.3120 | 33.325 | 9,740 | 5,850 | 1.85 |
| GW 211 PPB9 | 1 | 2.1950 | 55.753 | 3.9370 | 100.000 | 0.9840 | 25.000 | 1.5620 | 39.675 | 9,740 | 5,850 | 2.02 |
| GW 211 PPB10 | 3 | 1.9380 | 49.225 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.26 |
| GW 211 PPB13 | 1 | 1.7850 | 45.339 | 3.9370 | 100.000 | 0.9840 | 25.000 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.02 |
| GW 211 PPB14 | 1 | 2.0150 | 51.181 | 3.9370 | 100.000 | 0.9840 | 25.000 | 1.3120 | 33.325 | 9,740 | 5,850 | 2.00 |
| GW 211 PP25 | 5 | 1.7800 | 45.212 | 3.9370 | 100.000 | 1.3120 | 33.325 | 1.7500 | 44.450 | 9,740 | 5,850 | 2.44 |
| GW 214 PP2 | 4 | 2.7559 | 70.000 | 4.9213 | 125.000 | 1.5620 | 39.675 | 1.5620 | 39.675 | 14,000 | 8,800 | 4.19 |
| GW 214 PPB2 | 3 | 2.7559 | 70.000 | 4.9213 | 125.000 | 1.5620 | 39.675 | 1.5620 | 39.675 | 14,000 | 8,800 | 3.96 |
| GW 214 PPB3 | 3 | 1.9380 | 49.225 | 4.9213 | 125.000 | 1.5620 | 39.675 | 1.5620 | 39.675 | 14,000 | 8,800 | 4.24 |
| GW 214 PPB5 | 2 | 2.7559 | 70.000 | 4.9213 | 125.000 | 1.5620 | 39.675 | 2.4380 | 61.925 | 14,000 | 8,800 | 4.75 |
| GW 214 PPB6 | 1 | 2.6881 | 68.278 | 4.9213 | 125.000 | 1.1024 | 28.000 | 2.6875 | 68.263 | 14,000 | 8,800 | 5.14 |
