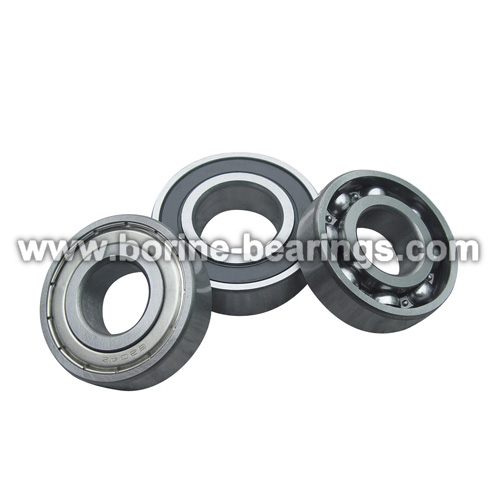

Deep Groove Ball Bearings 6300 series

Product Name: Deep Groove Ball Bearings 6300 series
Model NO.: 6300, 6400 series
Origin: CHINA
Brand Name: Borine

Product Details: Deep Groove Ball Bearings 6300 series

Deep groove ball bearing is applied widely.It can be bear the radial and axial loading, suitable for high speed rotation.
Matric Size have 6000,6200,6300,6400,6800,6900,16000,62200,62300 series.
Other special ball bearing can be produced according to the samples or draws supplied by customers.

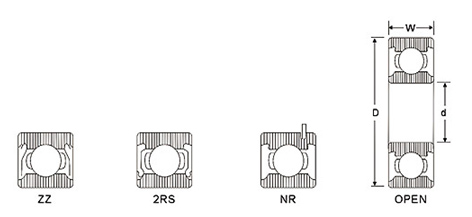

Deep Groove Ball Bearings

6300, 6400 series

Bearing Number	Bore d		Outer Diameter D		Width W		Basic Load Rating		Weight
Bearing Number	mm	in.	mm	in.	mm	in.	Dynamic Cr (N)	Static Cor (N)	lbs.
6300	10	0.3937	35	1.3780	11	0.4331	6230	3770	0.108
6301	12	0.4724	37	1.4567	12	0.4724	7470	4650	0.130
6302	15	0.5906	42	1.6535	13	0.5118	8730	5430	0.181
6303	17	0.6693	47	1.8504	14	0.5512	10700	6700	0.247
6304	20	0.7874	52	2.0472	15	0.5906	12300	7810	0.428
6305	25	0.9843	62	2.4409	17	0.6693	17200	11400	0.504
6306	30	1.1811	72	2.8346	19	0.7480	21700	14900	0.766
6307	35	1.3780	80	3.1496	21	0.8268	25700	17900	0.958
6308	40	1.5748	90	3.5433	23	0.9055	31300	22400	1.400
6309	45	1.7717	100	3.9370	25	0.9843	37100	26300	1.817
6310	50	1.9685	110	4.3307	27	1.0630	47500	35700	2.378
6311	55	2.1654	120	4.7244	29	1.1417	55000	41900	2.995
6312	60	2.3622	130	5.1181	31	1.2205	62900	48600	3.809
6313	65	2.5591	140	5.5118	33	1.2992	71300	55800	4.558
6314	70	2.7559	150	5.9055	35	1.3780	80100	63500	5.659
6315	75	2.9528	160	6.2992	37	1.4567	113000	77000	6.652
6316	70	2.7559	170	6.6929	39	1.5354	123000	86500	7.907
6317	85	3.3465	180	7.0866	41	1.6142	133000	97000	9.317
6318	90	3.5433	190	7.4803	43	1.6929	143000	107000	10.815
6320	100	3.9370	215	8.4646	47	1.8504	173000	141000	15.419
6322	110	4.3307	240	9.4488	50	1.9685	205000	179000	21.013
6403	17	0.6693	62	2.4409	17	0.6693	17500	11900	0.500
6404	20	0.7874	72	2.8346	19	0.7480	28500	13900	0.900
6405	25	0.9843	80	3.1496	21	0.8268	34500	17500	1.190
6406	30	1.1811	90	3.5433	23	0.9055	36400	26800	1.590
6407	35	1.3780	100	3.9370	25	0.9843	42700	31400	2.060
6408	40	1.5748	110	4.3307	27	1.0630	49300	36500	2.690
6409	45	2.7717	120	4.7244	29	1.1417	59200	45600	3.410
6410	50	1.9685	130	5.1181	31	1.2205	71000	55500	4.200
6411	55	2.1654	140	5.5118	33	1.2992	77100	62700	5.130
6412	60	2.3622	150	5.9055	35	1.3780	83900	70300	6.220
