Deep groove ball bearing is applied widely.It can be bear the radial and axial loading, suitable for high speed rotation.
Inch Size have R, RLS, RMS, MR,1600 series. Other special ball bearing can be produced according to the samples or draws supplied by customers.

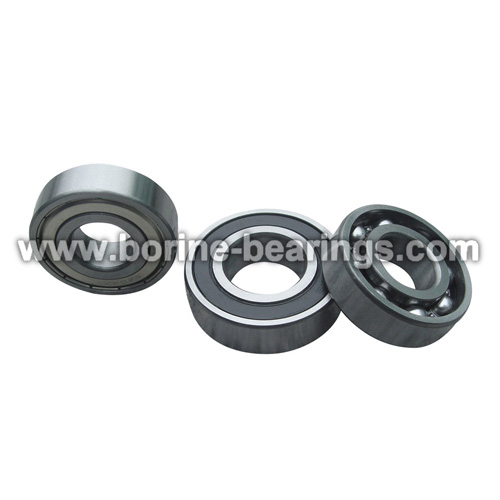

Deep Groove Ball Bearings
Inch Size
RLS series
| Bearing Number | Bore d | Outer Diameter D | Width W | Basic Load Rating | Weight | ||||
| in. | mm | in. | mm | in. | mm | Dynamic Cr (N) | Static Cor (N) | kg. | |
| RLS 4 | 1/2 | 12.700 | 1-5/16 | 33.338 | 3/8 | 9.525 | 520 | 380 | 0.03 |
| RLS 5 | 5/8 | 15.875 | 1-9/16 | 39.688 | 7/16 | 11.110 | 720 | 430 | 0.06 |
| RLS 6 | 3/4 | 19.050 | 1-7/8 | 47.625 | 9/16 | 14.290 | 1000 | 630 | 0.11 |
| RLS 7 | 7/8 | 22.225 | 2 | 50.800 | 9/19 | 14.290 | 1200 | 760 | 0.13 |
| RLS 8 | 1 | 25.100 | 2-1/4 | 57.150 | 5/8 | 15.875 | 1400 | 970 | 0.17 |
| RLS 9 | 1-1/8 | 28.575 | 2-1/2 | 63.500 | 5/8 | 15.875 | 1530 | 1020 | 0.21 |
| RLS 10 | 1-1/4 | 31.750 | 2-3/4 | 69.850 | 11/16 | 17.460 | 1830 | 1230 | 0.28 |
| RLS 11 | 1-3/8 | 34.925 | 3 | 76.200 | 11/16 | 17.460 | 2010 | 1390 | 0.37 |
| RLS 12 | 1-1/2 | 38.100 | 3-1/4 | 82.550 | 3/4 | 19.050 | 2400 | 1700 | 0.43 |
