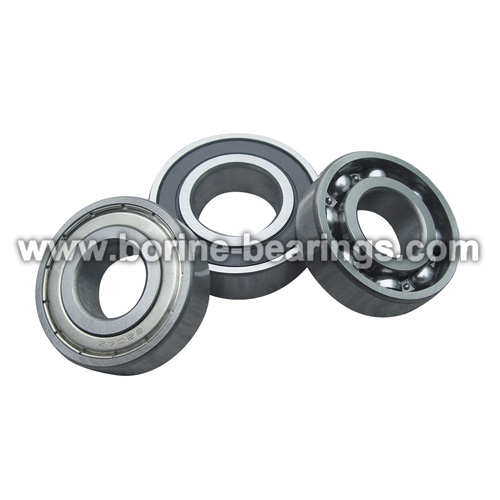

Deep Groove Ball Bearings 6200 series

Product Name: Deep Groove Ball Bearings 6200 series
Model NO.: 6000,6200 Series
Origin: CHINA
Brand Name: Borine

Product Details: Deep Groove Ball Bearings 6200 series

Deep groove ball bearing is applied widely.It can be bear the radial and axial loading, suitable for high speed rotation.
Matric Size have 6000,6200,6300,6400,6800,6900,16000,62200,62300 series.
Other special ball bearing can be produced according to the samples or draws supplied by customers.

Deep Groove Ball Bearings

6000, 6200,16000 Series

Bearing Number	Bore d		Outer Diameter D		Width W		Basic Load Rating		Weight
Bearing Number	mm	in.	mm	in.	mm	in.	Dynamic Cr (N)	Static Cor (N)	lbs.
607	7	0.2756	19	0.7480	6	0.2632	2240	910	0.017
608	8	0.3149	22	0.8661	7	0.2756	3350	1400	0.026
6000	10	0.3937	26	1.0236	8	0.3150	3510	1950	0.042
6001	12	0.4724	28	1.1024	8	0.3150	3930	2230	0.046
6002	15	0.5906	32	1.2598	9	3.5430	4300	2510	0.057
6003	17	0.6690	35	1.3780	10	0.3937	5230	3040	0.079
6004	20	0.7874	42	1.6535	12	0.4724	7210	4460	0.152
6005	25	0.9843	47	1.8504	12	0.4724	7740	4960	0.165
16005	25	0.9843	47	1.8564	8	0.3150	8800	5600	0.130
6006	30	1.1811	55	2.1654	13	0.5118	10200	6910	0.198
16006	30	1.1811	55	2.1654	9	0.3543	11200	7400	0.185
6007	35	1.3780	62	2.4409	14	0.5112	12300	8530	0.352
16007	35	1.3780	62	2.4409	9	0.3543	12200	8800	0.236
6008	40	1.5748	68	2.6772	15	0.5906	12900	9300	0.447
16008	40	1.5748	68	2.6772	9	0.3543	12500	9600	0.275
6009	45	1.7717	75	2.9528	16	0.6299	15300	11300	0.528
16009	45	1.7717	75	2.9528	10	0.3937	15600	12200	0.341
6010	50	1.9685	80	3.1493	16	0.6299	16000	12000	0.617
16010	50	1.9685	80	3.1496	10	0.3937	16200	13200	0.367
6011	55	2.1654	90	3.5433	18	0.7087	21700	17000	0.837
16011	55	2.1654	90	3.5433	11	0.4331	19400	16200	0.456
6012	60	2.3622	95	3.7402	18	0.7087	23600	18200	0.903
16012	60	2.3622	95	3.7402	11	0.4331	19900	17500	0.493
6013	65	2.5591	100	3.9370	18	0.7087	24700	19700	0.947
16013	65	2.5591	100	3.9370	11	0.4331	20500	18600	0.531
6014	70	2.7559	110	4.3307	20	0.7874	29400	24200	1.321
6015	75	3.9528	115	4.5276	20	0.7874	39500	33500	1.429
6200	10	0.3937	30	1.1811	9	0.3543	4600	2620	0.066
6201	12	0.4724	32	1.2598	10	0.3937	4700	2660	0.081
6201-1/2	12.7	0.5000	32	1.2598	10	0.3937	4700	2660	0.081
6201-13	13	0.5118	32	1.2598	10	0.3937	4700	2660	0.081
6202	15	0.5906	35	1.3780	11	0.4331	5860	3490	0.101
6202-1/2	12.7	0.5000	35	1.3780	11	0.4331	5860	3480	0.101
6202-5/8	15.875	0.6250	35	1.3780	11	0.4331	5860	3480	0.090
6202-16	16	0.6299	35	1.3780	11	0.4331	5860	3480	0.090
6203	17	0.6693	40	1.5748	12	0.4724	7390	4390	0.143
6203-3/8	9.525	0.3750	40	1.5748	12	0.4724	7350	4410	0.163
6203-1/2	12.7	0.5000	40	1.5748	12	0.4724	7350	4410	0.153
6203-15	15	0.5906	40	1.5748	12	0.4724	7350	4410	0.148
6203-5/8	15.875	0.6250	40	1.5748	12	0.4724	7350	4410	0.140
6203-16	16	0.6299	40	1.5748	12	0.4724	7350	4410	0.150
6203-3/4	19.05	0.7500	40	1.5748	12	0.4724	7350	4410	0.130
6204	20	0.7874	47	1.8504	14	0.5112	9820	6200	0.236
6204-3/4	19.05	0.7500	47	1.8504	14	0.5112	9800	6180	0.246
6204-7/8	22.225	0.8750	47	1.8504	14	0.5112	9800	6180	0.230
6205	25	0.9843	52	2.0472	15	0.5906	10800	6980	0.295
6205-1/1	25.4	1.0000	52	2.0472	15	0.5906	10800	6960	0.295
6206	30	1.1811	62	2.4409	16	0.6299	15000	10000	0.445
6207	35	1.3780	72	2.8346	17	0.6693	19700	13700	0.634
6208	40	1.5748	80	3.1496	18	0.0787	25100	17900	0.815
6209	45	1.7717	85	3.3465	19	0.7480	25800	18500	0.898
6210	50	1.9385	90	3.5433	20	0.7848	27000	19800	1.006
6211	55	2.1654	100	3.9370	21	0.8268	33300	21100	1.326
6212	60	2.3622	110	4.3307	22	0.8661	40300	31100	1.762
6213	65	2.5591	120	4.7244	23	0.9055	44000	34200	2.180
6214	70	2.7559	125	4.9213	24	0.9449	47800	37500	2.268
6215	75	2.9528	130	5.1881	25	0.9842	66000	49500	2.620
