Tapered Roller Bearing specially suitable for bear radial laoding and single way axial loading,the loading capacity is larger. Inch series.

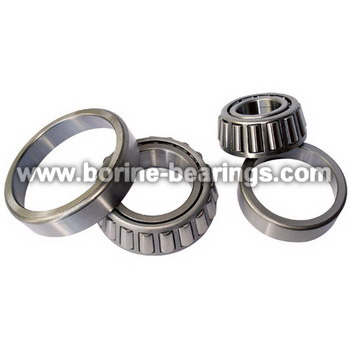

Tapered Roller Bearings
Inch size
| Bearing No. | Assembly No. | Boundary Dimensions (mm) | Mass | |||||
| Cone | Cup | d | D | T | B | C | (kg.) | |
| LM11749 | LM11710 | SET 1 | 17.462 | 39.878 | 13.843 | 14.605 | 10.688 | 0.083 |
| LM11949 | LM11910 | SET 2 | 19.050 | 45.237 | 15.494 | 16.637 | 12.065 | 0.124 |
| M12649 | M12610 | SET 3 | 21.430 | 50.005 | 17.526 | 18.288 | 13.970 | 0.169 |
| L44649 | L44610 | SET 4 | 26.988 | 50.292 | 14.244 | 14.732 | 10.688 | 0.115 |
| LM48548 | LM48510 | SET 5 | 34.925 | 65.088 | 18.034 | 18.288 | 13.970 | 0.248 |
| LM67048 | LM67010 | SET 6 | 31.750 | 59.131 | 15.875 | 16.764 | 11.811 | 0.180 |
| M201047 | M201010 | SET 7 | 39.688 | 73.025 | 25.654 | 22.098 | 21.336 | 0.435 |
| LM12749 | LM12710 | SET 12 | 21.986 | 45.237 | 15.494 | 16.637 | 12.065 | 0.123 |
| L68149 | L68110 | SET 13 | 34.988 | 59.131 | 15.875 | 16.764 | 11.938 | 0.167 |
| L44643 | L44610 | SET 14 | 25.400 | 50.292 | 14.244 | 14.732 | 10.668 | 0.130 |
| L45449 | L45410 | SET 8 | 29.000 | 50.292 | 14.224 | 14.732 | 10.668 | 0.110 |
| LM12749 | LM12711 | SET 16 | 21.980 | 45.974 | 15.494 | 16.637 | 12.065 | 0.121 |
| L68149 | L68111 | SET 17 | 34.988 | 59.974 | 15.875 | 16.764 | 11.938 | 0.174 |
| JL69349 | JL69310 | SET 11 | 38.000 | 63.000 | 17.000 | 17.000 | 13.500 | 0.194 |
| 1988 | 1922 | SET 21 | 28.575 | 57.100 | 19.845 | 19.335 | 15.875 | 0.213 |
| LM104949E | LM104910 | SET 23 | 50.800 | 82.550 | 51.765 | 51.765 | 41.605 | 1.100 |
| LM67045 | LM67010 | SET 22 | 31.750 | 59.131 | 15.875 | 18.570 | 11.811 | 0.180 |
| JL68145 | JL68111Z | SET 24 | 35.000 | 60.000 | 15.875 | 18.460 | 11.990 | 0.183 |
| LM12748 | LM12710 | SET 34 | 21.430 | 45.237 | 15.494 | 16.637 | 12.065 | 0.121 |
| LM501349 | LM501310 | SET 35 | 41.275 | 73.431 | 19.588 | 19.812 | 14.732 | 0.327 |
| LM603049 | LM603012 | SET 36 | 45.242 | 77.788 | 21.430 | 19.842 | 16.667 | 0.381 |
| LM603049 | LM603011 | SET 37 | 45.242 | 77.788 | 19.842 | 19.842 | 15.080 | 0.363 |
| LM104949 | LM104911 | SET 38 | 50.800 | 82.550 | 21.590 | 22.225 | 16.510 | 0.435 |
| JL26749 | JL26710 | SET 46 | 32.000 | 53.000 | 14.500 | 15.000 | 11.500 | 0.120 |
| JLM104946 | JLM104910 | SET 26 | 50.000 | 82.000 | 21.500 | 21.500 | 17.000 | 0.440 |
| 57410S | LM29710S | SET 42 | 38.100 | 65.088 | 18.034 | 21.139 | 13.940 | 0.240 |
| LM102949 | LM102910 | SET 47 | 45.242 | 73.431 | 19.588 | 19.812 | 15.748 | 0.303 |
| LM29748 | LM29710S | SET 56 | 38.100 | 65.088 | 18.034 | 18.288 | 13.970 | 0.233 |
| U298 | U261L | SET 9 | 35.000 | 65.000 | 18.100 | 20.600 | 17.000 | 0.380 |
| U399 | U360L | SET 10 | 39.688 | 73.025 | 19.395 | 22.100 | 18.500 | 0.500 |
| U399A | U365L | SET 20 | 39.688 | 79.967 | 19.395 | 22.100 | 20.100 | 0.740 |
| A6075 | A6157 | 19.050 | 39.992 | 12.014 | 11.153 | 9.525 | 0.067 | |
| JL69345 | JL69310Z | 38.000 | 63.000 | 17.000 | 19.000 | 13.500 | 0.198 | |
| JLM67042 | LM67010 | SET 30 | 28.000 | 57.150 | 17.462 | 17.462 | 13.495 | 0.270 |
| 02872 | 02820 | SET 50 | 28.575 | 73.025 | 22.225 | 22.225 | 17.462 | 0.480 |
| 15106 | 15245 | SET 51 | 26.988 | 62.000 | 19.050 | 20.638 | 14.288 | 0.291 |
| 25580 | 25520 | SET 52 | 44.450 | 82.931 | 23.812 | 25.400 | 19.050 | 0.561 |
| 25580 | 25523 | SET 53 | 44.450 | 82.931 | 26.988 | 25.400 | 22.225 | 0.603 |
| 25590 | 25520 | SET 54 | 45.618 | 82.931 | 23.812 | 25.400 | 19.050 | 0.544 |
| 25590 | 25523 | SET 55 | 45.618 | 82.931 | 26.988 | 25.400 | 22.225 | 0.588 |
| 31594 | 31520 | SET 57 | 34.920 | 76.200 | 29.370 | 28.575 | 23.812 | 0.627 |
| LM48548A | LM48510 | SET 58 | 34.925 | 65.088 | 18.034 | 18.288 | 13.970 | 0.252 |
| LM48548A | LM48511A | SET 59 | 34.925 | 65.088 | 21.082 | 18.288 | 17.016 | 0.280 |
| LM48548 | LM48511A | SET 60 | 34.925 | 65.088 | 21.082 | 18.288 | 17.018 | 0.290 |
| 11590 | 11520 | SET 61 | 15.875 | 42.862 | 14.288 | 14.288 | 9.525 | 0.100 |
| 17887 | 17831 | SET 62 | 45.230 | 79.985 | 19.842 | 20.638 | 15.080 | 0.400 |
| M88048 | M88010 | SET 63 | 33.338 | 68.262 | 22.225 | 22.225 | 17.462 | 0.379 |
| HM903249 | HM903210 | SET 64 | 44.450 | 95.250 | 30.958 | 28.575 | 22.225 | 1.000 |
| M96647 | M86610 | SET 65 | 28.575 | 64.292 | 21.433 | 21.433 | 16.670 | 0.348 |
| 368S | 362 | SET 66 | 51.592 | 90.000 | 20.638 | 22.225 | 16.513 | 0.507 |
| HM88649 | HM88610 | SET 67 | 34.925 | 72.233 | 25.400 | 25.400 | 19.842 | 0.489 |
| 497 | 493 | SET 68 | 85.725 | 136.525 | 30.162 | 28.789 | 22.225 | 1.550 |
| LM501349 | LM501314 | SET 69 | 41.275 | 73.431 | 21.430 | 19.812 | 16.604 | 0.350 |
| LM29749 | LM29710S | SET 70 | 38.100 | 65.088 | 18.034 | 18.288 | 13.970 | 0.235 |
| 15101 | 15245 | SET 73 | 25.400 | 62.000 | 19.050 | 20.638 | 14.288 | 0.300 |
| 387A | 382A | SET 74 | 57.150 | 96.838 | 21.000 | 21.946 | 15.875 | 0.581 |
| 387A | 382S | SET 75 | 57.150 | 96.868 | 25.400 | 21.946 | 20.274 | 0.650 |
| 387AS | 382A | SET 76 | 57.150 | 96.868 | 21.000 | 21.946 | 15.875 | 0.576 |
| 388A | 382 | SET 77 | 57.531 | 98.425 | 21.000 | 21.946 | 17.826 | 0.610 |
| 55200C | 55437 | SET 78 | 50.800 | 111.125 | 30.162 | 26.909 | 20.638 | 1.080 |
| 56425 | 56650 | SET 79 | 107.950 | 165.100 | 36.512 | 36.512 | 26.988 | 2.690 |
| HM88542 | HM88510 | SET 81 | 31.750 | 73.025 | 29.370 | 27.783 | 23.020 | 0.622 |
| LM104949 | LM104910 | SET 82 | 50.800 | 82.000 | 21.500 | 22.225 | 17.000 | 0.429 |
| HM803149 | HM803110 | SET 83 | 44.450 | 88.900 | 30.162 | 29.370 | 23.020 | 0.849 |
| HM807040 | HM807010 | SET 84 | 44.450 | 104.775 | 36.512 | 36.512 | 28.575 | 1.620 |
| 25880 | 25820 | SET 85 | 36.487 | 73.025 | 23.813 | 24.608 | 19.050 | 0.559 |
| 580 | 572 | SET 401 | 82.550 | 139.992 | 36.512 | 36.098 | 28.575 | 2.220 |
| 594A | 592A | SET 403 | 95.250 | 152.400 | 39.688 | 36.322 | 30.162 | 2.510 |
| 598A | 592A | SET 404 | 92.075 | 152.400 | 39.688 | 36.322 | 30.162 | 2.630 |
| 3782 | 3720 | SET 406 | 44.450 | 93.264 | 30.162 | 60.302 | 23.812 | 0.961 |
| 39590 | 39520 | SET 408 | 66.675 | 112.712 | 30.162 | 30.162 | 23.813 | 1.180 |
| HM212047 | HM212011 | SET 412 | 63.500 | 122.238 | 38.100 | 38.354 | 29.718 | 1.940 |
| HM212049 | HM212011 | SET 413 | 66.675 | 122.238 | 38.100 | 28.354 | 29.718 | 1.850 |
| HM218248 | HM218210 | SET 414 | 89.975 | 146.975 | 40.000 | 40.000 | 32.500 | 2.525 |
| HM518445 | HM518410 | SET 415 | 88.900 | 152.400 | 39.688 | 39.688 | 30.163 | 2.840 |
| 47890 | 47820 | 92.075 | 146.050 | 33.338 | 34.925 | 26.195 | 2.080 | |
| 368A | 362A | 50.800 | 88.900 | 20.638 | 22.225 | 16.513 | 0.516 | |
| 2788 | 2720 | 38.100 | 76.200 | 23.812 | 25.654 | 19.050 | 0.402 | |
| 3780 | 3720 | 50.800 | 93.264 | 30.162 | 30.302 | 23.812 | 0.848 | |
| 3872 | 3820 | 34.925 | 85.725 | 30.162 | 30.162 | 23.812 | 0.897 | |
| 09067 | 09195 | 19.050 | 49.225 | 18.034 | 19.050 | 14.288 | 0.179 | |
| 15123 | 15245 | 31.750 | 62.000 | 18.161 | 19.050 | 14.288 | 0.244 | |
| 11590 | 11520 | 15.875 | 42.862 | 14.288 | 14.288 | 9.525 | 3.780 | |
| 24780 | 24720 | 41.275 | 76.200 | 22.225 | 22.225 | 23.020 | 0.432 | |
| 25877 | 25821 | 34.925 | 73.025 | 23.812 | 24.608 | 19.050 | 0.471 | |
| 27687 | 27620 | 82.550 | 125.412 | 25.400 | 25.400 | 19.845 | 1.070 | |
| 28985 | 28920 | 60.325 | 101.600 | 25.400 | 25.400 | 19.845 | 0.811 | |
