Stamped Steel Pillow Block Housings

Product Name: Stamped Steel Pillow Block Housings

Product Details: Stamped Steel Pillow Block Housings

All Stamped Steel Mounting Flanges are for curved outer race bearings. May be mounted at any angle to provide a sturdy, compact housing for the bearing. Initial self-alignment is provided by the curved outer surface of the bearing which matches the curved inside surface of the flange mount. Flanges available in Round, Square, Triangular, 2-Hole, Pillow Block.

Stamped steel Zinc-Plated Mounting Flanges
Stamped Steel Pillow Block Housings

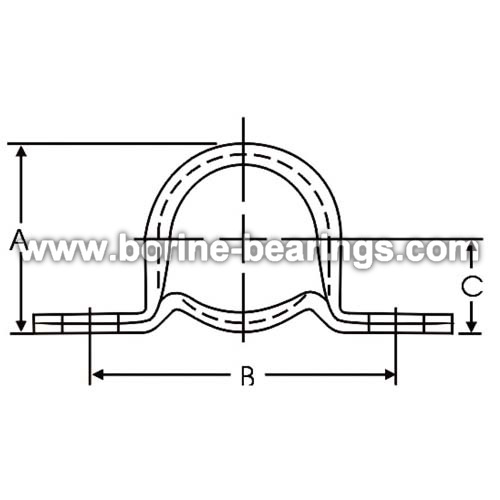

Part Number		To Fit Shaft Size	A.	B.	C.
PP203	40PB	1/2", 9/16", 5/8"	1 3/4"	2 11/16"	7/8"
PP204	47PB	3/4"	2"	3"	1"
PP205	52PB	13/16", 7/8", 15/16", 1"	2 7/32"	3 3/8"	1 1/8"
PP206	62PB	1 1/16", 1 1/8", 1 3/16", 1 1/4"	2 5/8"	3 3/4"	1 5/16"
PP207	72PB	1 1/4", 1 5/16", 1 3/8", 1 7/16"	3 1/8"	4 1/4"	1 9/16"
