Round Relubricable Mounting Flanges

Product Name: Round Relubricable Mounting Flanges

Product Details: Round Relubricable Mounting Flanges

All Stamped Steel Mounting Flanges are for curved outer race bearings. May be mounted at any angle to provide a sturdy, compact housing for the bearing. Initial self-alignment is provided by the curved outer surface of the bearing which matches the curved inside surface of the flange mount. Flanges available in Round, Square, Triangular, 2-Hole, Pillow Block.
Rrlubricable.

Stamped Steel Mounting Flanges
Round Relube Mounting Flanges

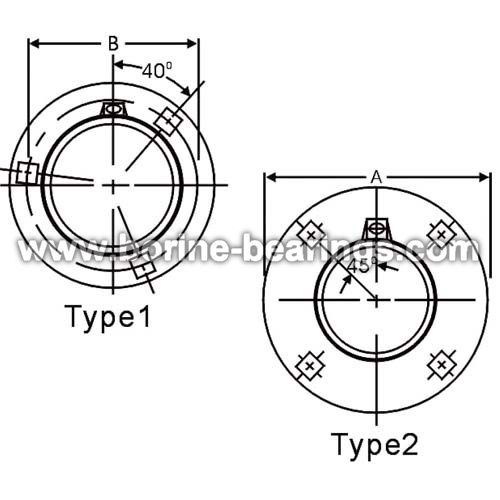

Part Number		To Fit Shaft Size	A.	B.	Type
GPF205	G52MSA	13/16", 7/8", 15/16", 1"	3 3/4"	3"	#1
GPF206	G62MSA	1 1/16", 1 1/8", 1 3/16", 1 1/4"	4 7/16"	3 9/16"	#1
GPF207	G72MSA	1 1/4", 1 5/16", 1 3/8", 1 7/16"	4 13/16"	3 15/16"	#1
GPF208	G80MSA	1 1/2", 1 9/16",	5 13/16"	4 11/16"	#2
GPF209	G85MSA	1 5/8", 1 11/16", 1 3/4"	5 7/8"	4 3/4"	#2
GPF210	G90MSA	1 13/16", 1 7/8", 1 15/16", 2"	6 1/8"	5"	#2
GPF211	G100MSA	2", 2 1/16", 2 1/8", 2 3/16"	6 9/16"	5 7/16"	#2
