S type Steel Agricultural Chains with Attachments

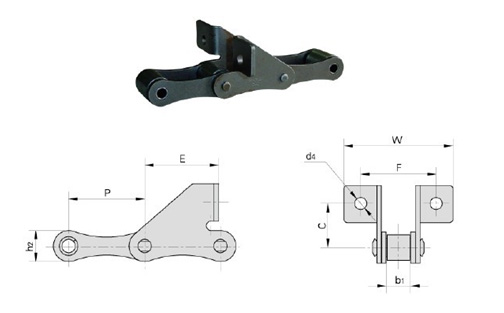

| Chain No. | Dimensions (mm) | |||||||
| P | b1 | C | E | F | W | d4 | h2 | |
| S32SD | 29.21 | 15.88 | 20.00 | 19.20 | 58.00 | 78.00 | 6.40 | 13.20 |
| S45W-F1 | 41.40 | 22.23 | 20.00 | 37.00 | 58.00 | 87.00 | 6.60 | 17.30 |
| S45W-F4 | 41.40 | 22.23 | 20.50 | 33.20 | 58.00 | 85.60 | 6.60 | 17.30 |
| S45F1 | 41.40 | 22.23 | 21.00 | 25.00 | 62.40 | 83.40 | 8.50 | 17.30 |
| S45SDF2 | 41.40 | 22.23 | 21.00 | 28.00 | 62.40 | 83.40 | 8.50 | 17.30 |
| S52SD | 38.10 | 22.23 | 20.00 | 19.20 | 62.00 | 88.50 | 6.40 | 17.30 |
| S52F4 | 38.10 | 15.80 | 20.60 | 37.00 | 53.80 | 69.50 | 6.40 | 16.70 |
| S52F8 | 38.10 | 22.23 | 20.60 | 37.00 | 60.70 | 76.40 | 6.40 | 17.30 |
| S52F9 | 38.10 | 18.50 | 20.00 | 18.50 | 54.50 | 71.00 | 6.50 | 16.50 |
| S52LSD | 38.10 | 16.40 | 20.00 | 17.50 | 54.50 | 71.00 | 6.50 | 16.50 |
| S55F2 | 41.40 | 22.23 | 20.00 | 37.00 | 58.00 | 87.00 | 6.40 | 17.30 |
| S55F3 | 41.40 | 22.23 | 20.50 | 33.20 | 58.00 | 85.60 | 6.60 | 17.30 |
| S55F4 | 41.40 | 22.23 | 20.00 | 37.00 | 58.00 | 87.00 | 6.60 | 17.30 |
| S55F6 | 41.40 | 22.23 | 20.00 | 30.00 | 58.00 | 87.00 | 6.40 | 17.30 |
| S55F7 | 41.40 | 22.23 | 20.50 | 33.20 | 62.00 | 85.60 | 6.60 | 17.30 |
| 55VSDF2 | 41.40 | 22.23 | 20.50 | 33.20 | 62.00 | 85.60 | 8.30 | 20.00 |
| 55VSDF1 | 41.40 | 22.23 | 20.50 | 33.20 | 62.00 | 85.60 | 6.60 | 20.00 |
| S55RSDF1 | 41.40 | 22.23 | 20.50 | 33.20 | 62.00 | 85.60 | 6.60 | 22.40 |
| S62SD | 41.94 | 26.20 | 20.00 | 32.60 | 61.40 | 92.00 | 6.40 | 17.30 |
