C type Steel Agricultural Chains with Attachments

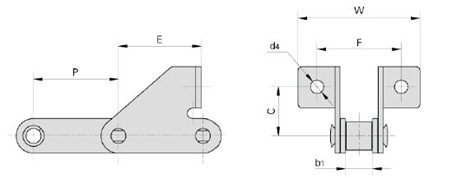

| Chain | Dimensions (mm) | ||||||
| No. | P | b1 | E | F | W | C | d4 |
| 38.4RSD | 38.40 | 19.05 | 38.40 | 52.00 | 71.00 | 24.50 | 8.40 |
| 38.4RSDF1 | 38.40 | 19.05 | 38.40 | 52.00 | 70.00 | 24.50 | 8.40 |
| 38.4RSDF2 | 38.40 | 19.05 | 38.40 | 52.00 | 71.00 | 24.50 | 9.00 |
| 38.4VSD | 38.40 | 18.00 | 38.40 | 52.00 | 71.00 | 24.00 | 8.40 |
| 38.4VBSD | 38.40 | 19.05 | 38.40 | 52.00 | 71.00 | 25.00 | 8.40 |
| 38.4VBSDF1 | 38.40 | 19.05 | 38.40 | 52.00 | 73.00 | 24.00 | 8.30 |
| 38.4VBSDF2 | 38.40 | 19.05 | 38.40 | 52.00 | 73.00 | 24.00 | 8.40 |
| 38.4VBSDF3 | 38.10 | 15.88 | 38.40 | 52.00 | 70.10 | 24.50 | 8.50 |
| CA550SD | 41.40 | 19.81 | 36.90 | 47.60 | 68.20 | 31.00 | 8.70 |
| CA550SDF4 | 41.40 | 19.81 | 36.90 | 47.60 | 89.00 | 31.00 | 8.70 |
| CA550SDF10 | 41.40 | 19.81 | 37.70 | 47.60 | 68.20 | 31.00 | 8.50 |

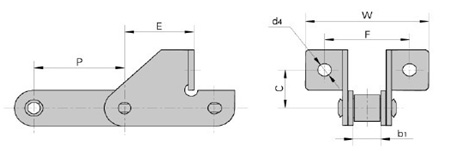

| Chain | Dimensions (mm) | ||||||
| No. | P | b1 | E | F | W | C | d4 |
| CA550SDF1 | 41.40 | 19.81 | 35.00 | 58.00 | 85.00 | 20.50 | 8.50 |
| CA550SDF2 | 41.40 | 19.81 | 32.50 | 62.00 | 84.00 | 20.00 | 8.60 |
| CA550SDF3 | 41.40 | 19.81 | 35.00 | 58.00 | 85.00 | 20.50 | 6.50 |
| CA550SDF6 | 41.40 | 19.81 | 33.00 | 58.00 | 85.00 | 20.50 | 6.50 |
| CA550F5SD | 41.40 | 20.24 | 33.00 | 57.80 | 83.50 | 20.00 | 6.70 |
| CA550F8SD | 41.40 | 19.81 | 33.00 | 58.00 | 85.90 | 20.50 | 6.50 |
| CA550SDF5 | 41.40 | 19.81 | 34.00 | 63.00 | 89.00 | 20.00 | 8.00 |
| CA550HSD | 41.40 | 20.00 | 33.40 | 58.00 | 90.00 | 20.00 | 6.50 |
| CA550VSD | 41.4 | 19.05 | 35 | 58 | 88.6 | 20.5 | 6.5 |
