Wheel Bearing

Product Name: Wheel Bearing

Product Details: Wheel Bearing

To adopt the structure of double row inner rings,the angle which fills the ball is bigger than othersthe auto wheel hub bearings can bear beavier axial and radial load. it is no need to adjust the inner clearance because it is already preserved in making.It was filled with Iubricating grease in high quality in the inner bearing,which could make the assemblage and usage easily.The range of the diameter of the inner ring is from 20 to 80mm and that of the outer ring is from 40 to 120mm.Now there are more than 300 kinds of this bearings.

Automotive Wheel Bearings

Bearing No.	Dimensions (mm)				Wt.	SKF	FAG	KOYO/NSK
Bearing No.	d	D	B	C	(kg)	SKF	FAG	KOYO/NSK
DAC20420030/29	20	42	30	29	0.17		539816
DAC25520037	25	52	37	37	0.31	445539A	576467
DAC25520042	25	52	42	42	0.36			25BWD01
DAC25520043	25	52	43	43	0.36
DAC25550043	25	55	43	43	0.44
DAC25720043	25	72	43	43	0.88
DAC27520043	27	52	43	43	0.36
DAC27600050	27	60	50	50	0.56	FW120		27BWD01J
DAC28580042	28	58	42	42	0.47	DAC28582RK		28BWD03ACA51
DAC28610042	28	61	42	42	0.56	DAC286142AW		28BWD01ACA60
DAC30580042	30	58	42	42	0.44			30BWD01AG3
DAC30600037	30	60	37	37	0.42	DAC306037 2RS
DAC30600337	30	60.03	37	37	0.42	63313C	529891AB/545312	DAC3060W
DAC30630042	30	63	42	42	0.56	DAC3063W-1	VKBA1344	30BWD01AC70
DAC30640042	30	64	42	42	0.49			30BWD03ACA78
DAC30650021	30	65	21	21	0.27	BB1B630374/C4	522372,543909
DAC30680045	30	68	45	45	0.73			30BWD04CA19
DAC30720037	30	72	37	37	0.58	656035
DAC32720345	32	72.03	45	45	0.6			32BWD05
DAC34620037	34	62	37	37	0.41	BAHB311316B	531910/561447	IR-8051
DAC34640037	34	64	37	37	0.43	309726DA	5320066DE	DAC3464G1
DAC34660037	34	66	37	37	0.5	636114A	580400CA	34BWD10B
DAC35640037	35	64	37	37	0.46	BAH0042		DAC3564A-1
DAC34740040	34	74	40	40
DAC35650035	35	65	35	35	0.4	BA2B443952	546238A	BT2B445620B
DAC35660032	35	66	32	32	0.42	445980A
DAC35660033	35	66	32	33	0.42	BAHB633676
DAC35660037	35	66	37	37	0.48	311309/BAH0023	544307C,
DAC35680233/30	35	68.02	33	30	0.47		DAC3568W-6	35BWD07A
DAC35680037	35	68	37	37	0.48	BAHB633295	541153A	DAC3568A2RS
DAC35720033	35	72	33	33	0.58	BA2B445535AE	548083	IR-8055
DAC35720034	35	72	34	34	0.58	VKBA857	540763	35BWD01C
DAC36680033	36	68	33	33	0.5	805172	VKNA0087	DAC3668W
DAC36720034	36	72	34	34	0.58	VKBA1372		36BWD04
DAC37720237	37	72.02	37	37	0.59	BA2B633028	527631	GB12807
DAC37720437	37	72.04	37	37	0.59	633531B	562398A
DAC37740045	37	74	45	45	0.79	309946A	541521C	37BWD01B
DAC38720040	38	72	40	40	0.63	VKBA1377	575069B	DAC3872W-10
DAC38720236/33	37.99	72.02	36	33	0.54	FW128/VKBA1191		38BWD12
DAC38740050	38	74	50	50	0.78		559192	38BWD06
DAC39680037	39	68	37	37	0.49	311315BD	540733BA	39BWD02
DAC39680637	39	68.06	37	37	0.48	211315AD	540733CA
DAC39720037	39	72	37	37	0.6	311396B	542186A	DAC3972W4
DAC39740039	39	74	39	39	0.66	636096A	579557	39BWD05
DAC40720037	40	72	37	37	0.55	311433	566719
DAC40740036/33	40	74	36	33	0.58	DAC4074CWCS73		40BWD16
DAC40740040	40	74	40	40	0.66	636060C	559493	40BWD06A
DAC40750037	40	75	37	37	0.62	633966E	559494
DAC40760033/28	40	76	33	28	0.54	474743	539166AB
DAC42760040/37	42	76	40	37	0.64	909042	547059	42BWD02
DAC42800342	42	80.03	42	42	0.81	309609AD	527243C	DAC4280B2RS

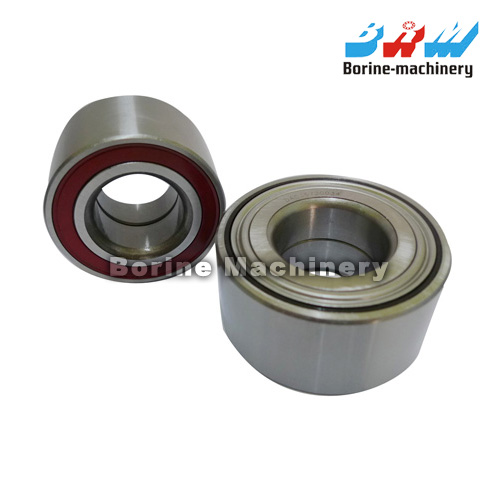

Product Images: Wheel Bearing
