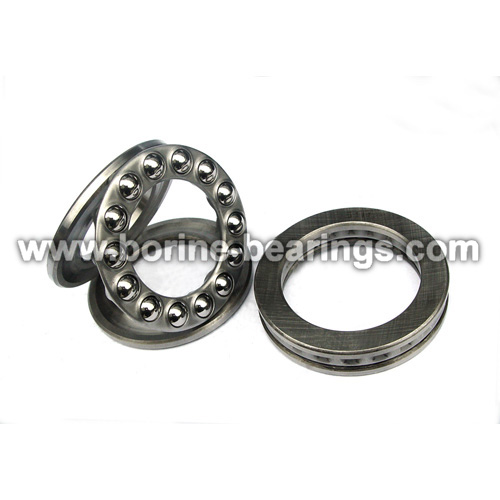

China Thrust Ball Bearings 51200 series,Thrust Ball Bearings 51200 series Manufacturer
Thrust Ball Bearing is designed only can bear axial loading,can transfer a large loading.It is mainly applied for the Automobile Steering Systems or Machine Tool Spindles. 51100 series.
Thrust Ball Bearings
51200 Series
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating | Wt. | |||
| d | D | T | Ca (KN) | Coa (KN) | (kg) | |
| 51200 | 10 | 26 | 11 | 12.70 | 17.10 | 0.030 |
| 51201 | 12 | 28 | 11 | 13.20 | 19.00 | 0.034 |
| 51202 | 15 | 32 | 12 | 16.60 | 24.80 | 0.044 |
| 51203 | 17 | 35 | 12 | 17.20 | 27.30 | 0.054 |
| 51204 | 20 | 40 | 14 | 22.30 | 3.70 | 0.081 |
| 51205 | 25 | 47 | 15 | 27.80 | 50.40 | 0.111 |
| 51206 | 30 | 52 | 16 | 29.30 | 58.20 | 0.139 |
| 51207 | 35 | 62 | 18 | 39.20 | 78.20 | 0.215 |
| 51208 | 40 | 68 | 19 | 46.99 | 98.30 | 0.276 |
| 51209 | 45 | 73 | 20 | 47.70 | 105.00 | 0.320 |
| 51210 | 50 | 78 | 22 | 48.50 | 111.00 | 0.378 |
| 51211 | 55 | 90 | 25 | 69.40 | 159.00 | 0.608 |
| 51212 | 60 | 95 | 26 | 73.60 | 179.00 | 0.676 |
| 51213 | 65 | 100 | 27 | 74.80 | 189.00 | 0.767 |
| 51214 | 70 | 105 | 27 | 73.60 | 199.00 | 0.793 |
| 51215 | 75 | 110 | 27 | 77.50 | 209.00 | 0.874 |
| 51216 | 80 | 115 | 28 | 78.50 | 218.00 | 0.916 |
| 51217 | 85 | 125 | 31 | 92.30 | 251.00 | 1.250 |
| 51218 | 90 | 135 | 35 | 117.00 | 326.00 | 1.700 |
| 51220 | 100 | 150 | 38 | 147.00 | 410.00 | 2.290 |
| 51222 | 110 | 160 | 38 | 148.00 | 431.00 | 2.460 |
| 51224 | 120 | 170 | 39 | 154.00 | 472.00 | 2.710 |
| 51226 | 130 | 190 | 45 | 191.00 | 565.00 | 4.220 |
| 51228 | 140 | 200 | 46 | 193.00 | 595.00 | 4.770 |
| 51230 | 150 | 215 | 50 | 220.00 | 685.00 | 5.870 |
| 51232 | 160 | 225 | 51 | 223.00 | 720.00 | 6.320 |
