Take-up Unit NAT, HCT series

Product Name: Take-up Unit NAT, HCT series
Model NO.: NAT200 series
Origin: CHINA
Brand Name: Borine

Product Details: Take-up Unit NAT, HCT series

Take-up Flange Unit is suitable for the situation which the bearings are to need adjust the distance.Usually applied for Belt drives and Chain transmissions.

Take-up Units
NAT200 Series

Unit No.	Shaft Dia.	Dimensions(mm)															Housing No.	Mass (kg)
	d
	in. mm	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B1	S
NAT204-12	3/4	16	10	51	32	19	51	12	76	89	94	32	21	61	44	17	T204	0.84
204	20
UCT205-14	7/8	16	10	51	32	19	51	12	76	89	97	32	24	62	44	17	T205	0.92
205-15	15/16
205	25
205-16	1
NAT206-18	1-1/8	16	10	56	37	22	57	12	89	102	113	37	28	70	48	18	T206	1.39
206	30
206-19	1-3/16
206-20	1-1/4
NAT207-20	1-1/4	16	13	64	37	22	64	12	89	102	129	37	30	78	51	19	T207	1.83
207-21	1-5/16
207-22	1-3/8
207	35
207-23	1-7/16
NAT208-24	1-1/2	19	16	83	49	29	83	16	102	114	144	49	33	88	56	21	T208	2.64
208-25	1-9/16
208	40
NAT209-26	1-5/8	19	16	83	49	29	83	16	102	117	144	49	35	87	56	21	T209	2.67
209-27	1-11/16
209-28	1-3/4
209	45
NAT210-30	1-7/8	19	16	83	49	29	86	16	102	117	149	49	37	90	63	25	T210	2.81
210-31	1-15/16
210	50
NAT211-32	2	25	19	102	64	35	95	22	130	146	171	64	38	106	71	28	T211	4.27
211-34	2-1/8
211	55
211-35	2-3/16
NAT212-36	2-1/4	32	19	102	64	35	102	22	130	146	194	64	42	119	78	31	T212	5.26
212	60
212-38	2-3/8
212-39	2-7/16
NAT213-40	2-1/2	32	21	111	70	41	121	26	151	167	224	70	44	137	86	34	T213	7.55
213	65
NAT214-44	2-3/4	32	21	111	70	41	121	26	151	167	224	70	46	137	86	34	T214	7.62
214	70
NAT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	92	37	T215	8.13
215-48	3
NAT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	95	37	T216	8.53

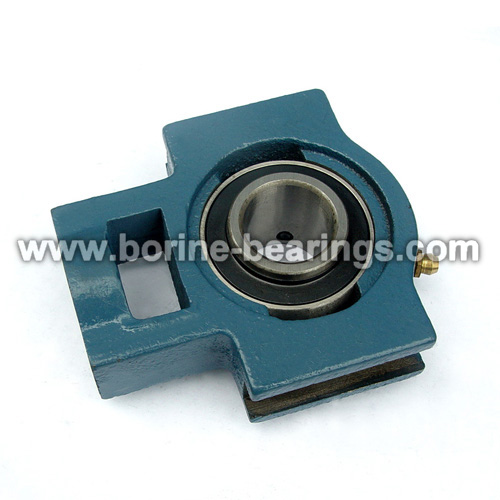

Product Images: Take-up Unit NAT, HCT series
