Self-Aligning Ball Bearings

Product Name: Self-Aligning Ball Bearings

Product Details: Self-Aligning Ball Bearings

Self-Aligning Ball Bearing is suitable for the Shaft be brought out a larger deflection or the bearings are not on the central line.The friction coefficient is smaller than other bearings,so it can keep lower temperature even if under high speed rotation. This Bearing have 1200, 2200, 1300, 2300,1200K, 1300K, 2200K, 2300K series.

Self-Aligning Ball Bearings
1200, 1300, 2200, 2300 series
1200K, 1300K, 2200K,2300K series

Bearing No.		Boundary Dimensions (mm)			Load Rating (KN)		Wt.
Bearing No.		d	D	B	Cr	Cor	(kg)
1200	-	10	30	9	5.48	1.20	0.035
2200	-		30	14	7.12	1.58	0.050
1300	-		35	11	7.22	1.62	0.060
2300	-		35	17	11.00	2.45	0.090
1201	-	12	32	10	5.55	1.25	0.042
2201	-		32	14	8.80	1.80	0.059
1301	-		37	12	9.42	2.12	0.070
2301	-		37	17	12.50	2.72	0.104
1202	-	15	35	11	7.48	1.75	0.051
2202	-		35	14	7.65	1.80	0.060
1302	-		42	13	9.50	2.28	0.100
2302	-		42	17	12.00	2.88	0.110
1203	-	17	40	12	7.90	2.02	0.076
2203	-		40	16	9.00	2.45	0.090
1303	-		47	14	12.50	3.18	0.140
2303	-		47	19	14.50	3.58	0.170
1204	1204K	20	47	14	9.95	2.65	0.120
2204	2204K		47	18	12.50	3.28	0.150
1304	1304K		52	15	12.50	3.38	0.170
2304	2304K		52	21	17.80	4.75	0.220
1205	1205K	25	52	15	12.00	3.30	0.140
2205	2205K		52	18	12.50	3.40	0.190
1305	1305K		62	17	17.80	5.05	0.260
2305	2305K		62	24	24.50	6.48	0.350
1206	1206K	30	62	16	15.80	4.70	0.230
2206	2206K		62	20	15.20	4.60	0.260
1306	1306K		72	19	21.50	6.28	0.398
2306	2306K		72	27	31.50	8.68	0.500
1207	1207K	35	72	17	15.80	5.08	0.320
2207	2207K		72	23	21.80	6.65	0.440
1307	1307K		80	21	25.00	7.95	0.540
2307	2307K		80	31	39.20	11.00	0.680
1208	1208K	40	80	18	19.00	6.95	0.420
2208	2208K		80	23	31.90	10.00	0.510
1308	1308K		90	23	33.80	11.20	0.720
2308	2308K		90	33	54.00	16.00	0.930
1209	1209K	45	85	19	22.90	7.80	0.470
2209	2209K		85	23	32.50	10.60	0.550
1309	1309K		100	25	39.00	13.40	0.960
2309	2309K		100	36	63.70	19.30	1.250
1210	1210K	50	90	20	26.50	9.15	0.530
2210	2210K		90	23	33.80	11.20	0.600
1310	1310K		110	27	43.60	14.00	1.200
2310	2310K		110	40	63.70	20.00	1.650
1211	1211K	55	100	21	20.60	10.03	0.708
2211	2211K		100	25	19.70	9.42	0.824
1311	1311K		120	29	39.80	18.20	1.570
2311	2311K		120	43	57.50	23.51	2.100
1212	1212K	60	110	22	23.30	11.63	0.892
2212	2212K		110	28	27.10	13.24	1.160
1312	1312K		130	31	44.80	21.15	1.980
2312	2312K		130	46	66.40	27.63	2.610
1213	1213K	65	120	23	24.00	12.37	0.915
2213	2213K		120	31	33.40	16.33	1.500
1313	1313K		140	33	48.20	22.93	2.380
2313	2313K		140	48	73.70	32.40	3.220
1214	1214K	70	125	24	26.50	13.58	1.290
2214	2214K		125	31	33.80	17.03	1.630
1314	1314K		150	35	57.50	27.86	2.980
2314	2314K		150	51	83.80	37.33	3.920
1215	1215K	75	130	25	29.90	15.58	1.350
2215	2215K		130	31	34.10	17.94	1.710
1315	1315K		160	37	61.30	29.91	3.550
2315	2315K		160	55	94.70	42.72	4.710
1216	1216K	80	140	26	30.80	16.94	1.650
2216	2216K		140	33	37.50	19.98	2.190
1316	1316K		170	39	68.50	33.32	4.190
2316	2316K		170	58	98.50	45.49	5.700
1217	1217K	85	150	28	37.90	20.52	2.100
2217	2217K		150	36	44.80	23.61	2.530
1317	1317K		180	41	75.70	37.83	4.950
2317	2317K		180	60	107.60	51.43	6.730
1218	1218K	90	160	30	43.80	23.43	2.440
2218	2218K		160	40	54.00	28.52	3.220
1318	1318K		190	43	90.00	45.13	5.990
2318	2318K		190	64	116.70	57.64	8.270
1219	1219K	95	170	32	49.20	27.05	3.060
2219	2219K		170	43	64.20	34.17	4.200
1319	1319K		200	45	101.80	51.67	6.980
2319	2319K		200	67	166.00	64.80	9.790
1220	1220K	100	180	34	53.30	29.56	3.680
2220	2220K		180	46	75.00	40.64	4.950
1320	1320K		215	47	110.30	58.12	8.640
2320	2320K		215	73	147.80	78.52	12.400

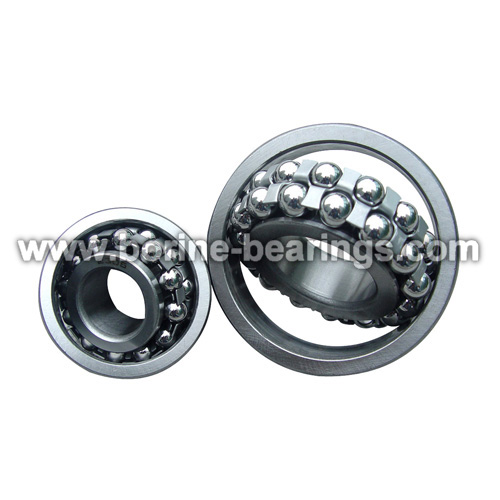

Product Images: Self-Aligning Ball Bearings
