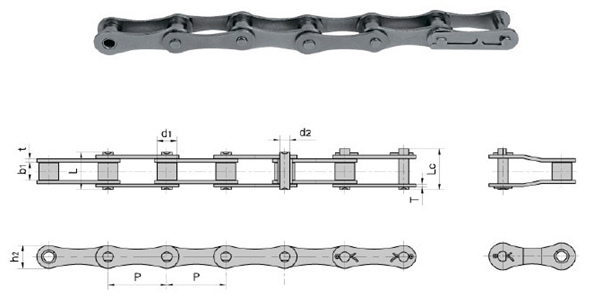

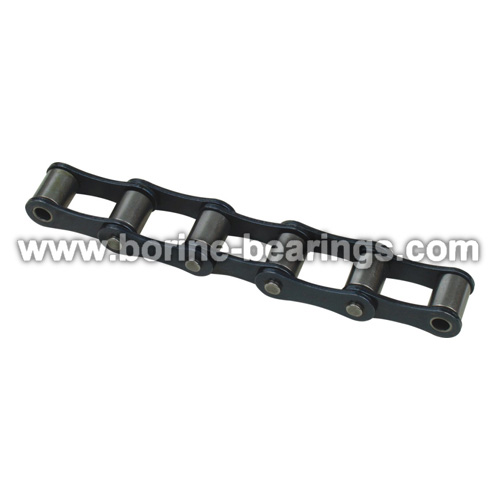

Double Pitch transmission Chains
|
DIN/ISO Chain No. |
ANSI Chain No. |
Pitch |
Roller Dia |
Width between inner plate |
Pin Dia |
PinLength |
Inner plate depth |
Plate Thick- ness |
Ultimate trnsile strength |
Average tensile strength |
Weight per Meter |
|
| P |
d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t / T max |
Q min |
Qo | Wt. | ||
| mm | mm | mm | mm | mm | mm | mm | mm | KN/Lbs. | KN | kg/M | ||
| 208A | 2040 | 25.400 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 14.1/3025 | 16.7 | 0.42 |
| 208B | 25.400 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 18/4091 | 19.4 | 0.45 | |
| 210A | 2050 | 31.750 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.00 | 2.03 | 22.2/5045 | 28.1 | 0.73 |
| 210B | 31.750 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | 22.4/5091 | 27.5 | 0.65 | |
| 212A | 2060 | 38.100 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 31.8/7227 | 36.8 | 1.02 |
| 212B | 38.100 | 12.07 | 11.68 | 5.72 | 22.50 | 25.20 | 16.00 | 1.85 | 29/6591 | 32.2 | 0.76 | |
| 216A | 2080 | 50.800 | 15.88 | 15.75 | 7.92 | 32.70 | 36.50 | 24.00 | 3.25 | 56.7/12886 | 65.7 | 1.70 |
| 216AH | 2080H | 50.800 | 15.88 | 15.75 | 7.92 | 36.20 | 39.40 | 24.00 | 4.00 | 56.7/12886 | 70.0 | 2.17 |
| 216B | 50.800 | 15.88 | 17.02 | 8.28 | 36.10 | 39.10 | 21.00 | 4.15/3.1 | 60/13636 | 72.8 | 1.75 | |
| 220A | 2100 | 63.500 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 60.00 | 4.00 | 88.5/20114 | 102.6 | 2.55 |
| 220B | 63.500 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.40 | 4.5/3.5 | 95/14773 | 106.7 | 2.62 | |
| 224A | 2120 | 76.200 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 127/28864 | 147.3 | 4.06 |
| 224B | 76.200 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6/4.8 | 160/36364 | 178.0 | 4.70 | |
| 228B | 88.900 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.5/6 | 200/45455 | 222.0 | 6.23 | |
