China GN103KRRB Radial Insert Ball Bearings,GN103KRRB Radial Insert Ball Bearings Manufacturer

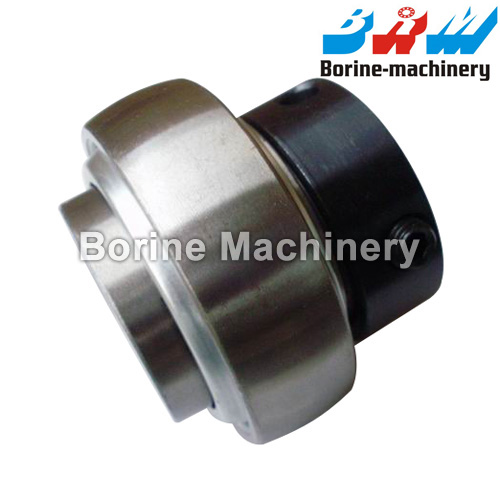

GN 103 KRRB Heavy Duty wide inner rings Bearings location by eccentric locking collar, Convex outer ring with lubricating groove. It is designed especially with a heavier outer ring than the standard series, as well as, a considerably thicker sealing member in the contact-type diaphragm seal. This design assure complete ertention of the lubricant and positive exclusion of all contaminants. This bearing is especially effective at slow-to-moderate speeds under the severest conditions of dirt and corrosion. Fits for all Mobile mechanical engineering and Stationary mechanical engineering application. It is as known as:
FAFNIR: GN103KRRB
INA: GN103-KRR-B
FAG: GN 103 KRRB
SNR: GN103KRRB
DIMENSIONS:
BORE: 1-3/16"
O.D.: 2.8346" Spherical
IR Width: 1.4375"
OR Width: 0.787"
Unit weight: 1.22Lbs
