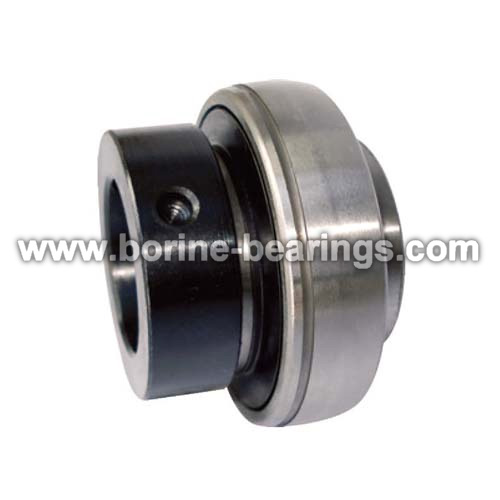

Insert Bearing is general designed with prelubricated. Adopted Double-Ply or Tri-Ply seal.Suitable for environment where severe contamination such as agricultural tillage equipment. This series of bearing is easy to be assembled and disassembled. It can rugulates the shaft angular deviation from two ends supporting and shaft distortion automatically
Insert Bearings
HC200, NA200 Series
| Bearing No. |
Shaft Dia. d in. mm |
Dimensions(mm) |
Mass (kg) |
|||||||
| D | C | B | S | B1 | B3 | h | d1 | |||
| NA202 | 15 | 40 | 14 | 27.8 | 13.9 | 37.3 | 13.5 | 3.5 | 28.6 | 0.22 |
| HC202-10 | 5/8 | 0.21 | ||||||||
| 203 | 17 | 0.2 | ||||||||
| 203-11 | 11/16 | 0.19 | ||||||||
| NA204-12 | 3/4 | 47 | 16 | 34 | 17 | 43.5 | 13.5 | 4.4 | 33.3 | 0.23 |
| HC204 | 20 | 0.22 | ||||||||
| NA205-14 | 7/8 | 52 | 17 | 34.8 | 17.4 | 44.3 | 13.5 | 4.3 | 38.1 | 0.29 |
| HC205-15 | 15/16 | 0.27 | ||||||||
| 205 | 25 | 0.25 | ||||||||
| 205-16 | 1 | 0.24 | ||||||||
| NA206-18 | 1-1/8 | 62 | 19 | 36.4 | 18.2 | 48.3 | 15.9 | 5 | 44.5 | 0.43 |
| HC206 | 30 | 0.41 | ||||||||
| 206-19 | 1-3/16 | 0.4 | ||||||||
| 206-20 | 1-1/4 | 0.38 | ||||||||
| NA207-20 | 1-1/4 | 72 | 20 | 37.6 | 18.8 | 51.1 | 17.5 | 5.8 | 55.6 | 0.68 |
| HC207-21 | 1-5/16 | 0.65 | ||||||||
| 207-22 | 1-3/8 | 0.61 | ||||||||
| 207 | 35 | 0.6 | ||||||||
| 207-23 | 1-7/16 | 0.58 | ||||||||
| NA208-24 | 1-1/2 | 80 | 21 | 42.8 | 21.4 | 56.3 | 18.3 | 6.3 | 60.3 | 0.83 |
| HC208-25 | 1-9/16 | 0.79 | ||||||||
| 208 | 40 | 0.78 | ||||||||
| NA209-26 | 1-5/8 | 85 | 22 | 42.8 | 21.4 | 56.3 | 18.3 | 6.8 | 63.5 | 0.96 |
| HC209-27 | 1-11/16 | 0.91 | ||||||||
| 209-28 | 1-3/4 | 0.87 | ||||||||
| 209 | 45 | 0.85 | ||||||||
| NA210-30 | 1-7/8 | 90 | 23 | 49.2 | 24.6 | 62.7 | 18.3 | 6.5 | 69.9 | 1.1 |
| HC210-31 | 1-15/16 | 1.04 | ||||||||
| 210 | 50 | 1.01 | ||||||||
| NA211-32 | 2 | 100 | 25 | 55.4 | 27.7 | 71.3 | 20.7 | 7.2 | 76.2 | 1.58 |
| HC211-34 | 2-1/8 | 1.44 | ||||||||
| 211 | 55 | 1.39 | ||||||||
| 211-35 | 2-3/16 | 1.36 | ||||||||
| NA212-36 | 2-1/4 | 110 | 27 | 61.8 | 30.9 | 77.7 | 22.3 | 8.2 | 84.2 | 2.03 |
| HC212 | 60 | 1.87 | ||||||||
| 212-38 | 2-3/8 | 1.85 | ||||||||
| 212-39 | 2-7/16 | 1.76 | ||||||||
| NA213-40 | 2-1/2 | 120 | 28 | 68.2 | 34.1 | 85.7 | 23.5 | 8 | 86 | 2.51 |
| HC213 | 65 | 2.41 | ||||||||
| NA214-44 | 2-3/4 | 125 | 30 | 68.2 | 34.1 | 85.7 | 23.5 | 9 | 96.8 | 2.58 |
| HC214 | 70 | 2.57 | ||||||||
| NA215 | 75 | 130 | 30 | 74.6 | 37.3 | 92.1 | 23.9 | 9 | 102 | 2.84 |
| HC215-48 | 3 | 2.74 | ||||||||
| HC216 | 80 | 140 | 33 | 74.6 | 37.3 | 95.2 | 27 | 10.3 | 110 | 3.12 |
