Hex Bore Agricultural Bearing

Product Name: Hex Bore Agricultural Bearing

Product Details: Hex Bore Agricultural Bearing

This serie bearings feature with a Hex bore inner ring.Used in applications where collars, set screws, or any other locking devices are not required.This seals incorporates BRM's Trash Seal, a close fitting metal shield backed by a molded rubber seal. Also available relubricable--prefix "G".
low speed moderately loaded applications.Primarily in agriculturals and conveyors.

Hex Bore Series Agricultural Bearings

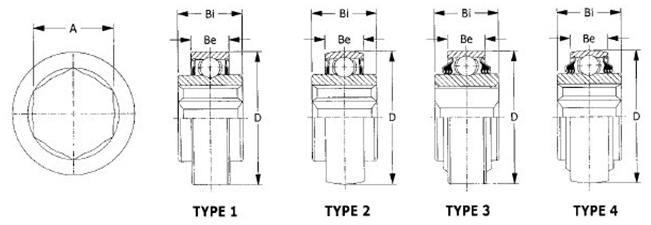

Part No.	Type	Hex Shaft	Boundary Dimensions (inch / mm)				Load Ratings		Wt.
		Size	A	D	Be	Bi	Cr	Cor	Lbs.
204KPP2	3	11/16"	0.695	1.8504	0.551	0.825	2900	1000	0.34
			17.653	47	14	20.955
204KRR2	1	11/16"	0.695	1.8504	0.551	0.825	2900	1410	0.32
			17.653	47	14	20.955
204KRRB2	1	11/16"	0.695	1.8504	0.551	0.825	2900	1410	0.32
			17.653	47	14	20.955
205KPP2	3	7/8"	0.876	2.0472	0.591	1	3150	1610	0.47
			22.25	52	15	25.4
205KRR2	1	7/8"	0.876	2.0472	0.591	1	3150	1610	0.44
			22.25	52	15	25.4
205KPPB2	4	7/8"	0.876	2.0472	0.591	1	3150	1610	0.47
			22.25	52	15	25.4
205KRRB2	2	7/8"	0.876	2.0472	0.591	1	3150	1610	0.44
			22.25	52	15	25.4
206KRR6	1	1"	1.001	2.4409	0.63	0.945	4370	2320	0.75
			25.425	62	16	24
206KRRB6	2	1"	1.001	2.4409	0.63	0.945	4370	2320	0.75
			25.425	62	16	24
G207KPPB2*	4	1-1/8"	1.126	2.8346	0.748	1.484	5770	3150	1.10
			28.6	72	19	37.694
207KRR9	1	1-1/8"	1.126	2.8346	0.669	1.484	5770	3150	1.00
			28.6	72	17	37.694
207KRRB9	2	1-1/8"	1.126	2.8346	0.669	1.484	5770	3150	1.00
			28.6	72	17	37.694
207KRR12	1	1-1/8"	1.126	2.8346	0.669	0.984	5770	3150	0.87
			28.6	72	17	25
207KRRB12	2	1-1/8"	1.126	2.8346	0.669	0.984	5770	3150	0.87
			28.6	72	17	25
GW208PPB22*	4	1-1/4"	1.255	3.1496	0.827	1.438	7340	3650	1.50
			31.877	80	21	36.52
W208KRRB6	2	1-3/8"	1.376	3.1496	0.827	1.438	7340	3650	1.31
			34.95	80	21	36.52
W208PPB16	4	1-1/4"	1.251	3.1496	0.709	1.438	7340	3650	1.45
			31.775	80	18	36.52
W208PP21	3	1-1/4"	1.251	3.1496	0.709	1.438	7340	3650	1.45
			31.775	80	18	36.52
G209KRRB2*	4	1-1/2"	1.501	3.3465	0.748	1.181	7350	4150	1.26
			38.125	85	19	30
G5209KYYB2**		1-1/2"	1.501	3.3465	1.1811	1.2992	9330	7580	1.27
			38.125	85	30	33
209KRR2	1	1-1/2"	1.501	3.3465	0.748	1.181	7350	4150	1.27
			38.125	85	19	30
209KRRB2	2	1-1/2"	1.501	3.3465	0.748	1.181	7350	4150	1.27
			38.125	85	19	30
210PPB20	4	1-1/4"	1.255	3.5433	0.8661	1.435	9070	4675	2.00
			31.877	90	22	36.45
210PP20	3	1-1/4"	1.255	3.5433	0.8661	1.435	9070	4675	2.05
			31.877	90	22	36.45
G210KPPB2*	4	1-1/2"	1.501	3.5433	0.8661	1.1811	7780	4650
			38.125	90	22	30
