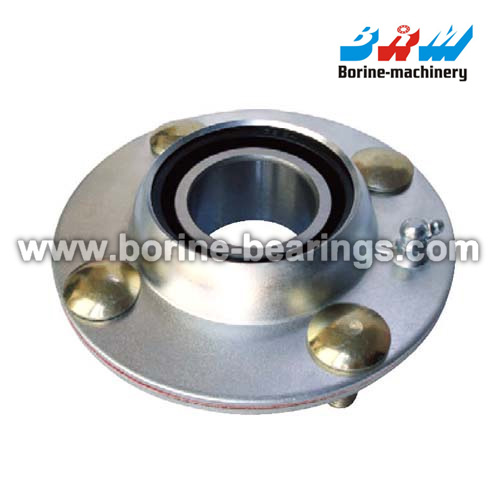

AA30941 John Deere Disc Harrow Unit

Product Name: AA30941 John Deere Disc Harrow Unit
Model NO.: AA30941
Origin: CHINA
Packing: Individual box
Brand Name: Borine
Delivery Time: 40-45 days
Minimum Order: 100 pcs
Quality System Certification: ISO9001:2008

Product Details: AA30941 John Deere Disc Harrow Unit

1-3/4" round bore center shaft Gang Bearing Kit, Relubricable. Fit for For Models 210, 215, 220, 230, 235, 621, 630, 635 & 637 Disc.

Complete Kit Contains:
1-AA28184 Disc Harrow bearing
1-FL27172 Flange with Grease Fitting
1-FL34792 Flange
1-AA33968 Gasket
1-Set of 4 Nuts and Bolts for Kit

Dimensions:
Bore: 1-3/4" Round
Bolt to Bolt Hole: 120.50mm
Weight: 4.37 Lbs

PART NO.	OEM NO.	DESCRIPTION/APPLICATION
AA30941	JD AA30941	Disc Bearing Kit with Zinc-plated Flange, Replacement gang bearing Kit for Models 210, 215, 220, 230, 235, 621, 630, 635 & 637 Disc. (WT: 4.37 Lbs) Complete Kit Contains 1-AA28184 1-FL27172 Flange with Grease Fitting 1-FL34792 Flange 1-AA33968 Gasket 1- Set of 4 Nuts and Bolts for Kit
