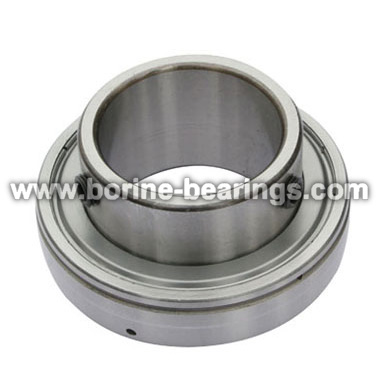

China Insert Bearing,Insert Bearing Manufacturer
Chains
(15)
Oil Seals
(3)
Sprockets
(9)
Springs
(7)
Stamped Parts
(7)
Bolts, U-bolt
(2)
| Bearing No. |
Shaft Dia. d in. mm |
Dimensions(mm) | Mass (kg) |
||||||
| D | B | C | S | h | G | ds | |||
| SB201 | 12 | 40 | 22 | 12 | 6 | 3.6 | 4 | M5X0.8 | 0.1 |
| 201-8 | 1/2 | 0.09 | |||||||
| 202 | 15 | 0.1 | |||||||
| 202-10 | 5/8 | 0.08 | |||||||
| SB204-12 | 3/4 | 47 | 25 | 14 | 7 | 4 | 5 | M6X1 | 0.15 |
| 204 | 20 | 0.13 | |||||||
| SB205-14 | 7/8 | 52 | 27 | 15 | 7.5 | 4.3 | 5.5 | M6X1 | 0.18 |
| 205-15 | 15/16 | 0.17 | |||||||
| 205 | 25 | 0.18 | |||||||
| 205-16 | 1 | 0.16 | |||||||
| SB206-18 | 1-1/8 | 62 | 30 | 16 | 8 | 5 | 6 | M6X1 | 0.28 |
| 206 | 30 | 0.26 | |||||||
| 206-19 | 1-3/16 | 0.25 | |||||||
| 206-20 | 1-1/4 | 0.24 | |||||||
| SB207-20 | 1-1/4 | 72 | 32 | 17 | 8.5 | 5.7 | 6 | M6X1 | 0.43 |
| 207-21 | 1-5/16 | 0.41 | |||||||
| 207-22 | 1-3/8 | 0.38 | |||||||
| 207 | 35 | 0.42 | |||||||
| 207-23 | 1-7/16 | 0.37 | |||||||
| SB208-24 | 1-1/2 | 80 | 34 | 18 | 9 | 6.2 | 7 | M8X1 | 0.6 |
| 208-25 | 1-9/16 | 0.58 | |||||||
| 208 | 40 | 0.6 | |||||||
| SB209-26 | 1-5/8 | 85 | 41.2 | 19 | 10.2 | 6.8 | 8.2 | M8X1 | 0.8 |
| 209-27 | 1-11/16 | ||||||||
| 209-28 | 1-3/4 | ||||||||
| 209 | 45 | ||||||||
| SB210-30 | 1-7/8 | 90 | 43.5 | 20 | 10.9 | 6.5 | 9.2 | M8X1 | 0.8 |
| 210-31 | 1-15/16 | ||||||||
| 210 | 50 | ||||||||
| SB211-32 | 2 | 100 | 45.3 | 23 | 11.8 | 7.2 | 9.8 | M8X1 | 1.1 |
| 211-34 | 2-1/8 | ||||||||
| 211 | 55 | ||||||||
| 211-35 | 2-3/16 | ||||||||
| SB212-36 | 2-1/4 | 110 | 53.7 | 24 | 14.9 | 8 | 9.8 | M10X1.25 | 1.3 |
| 212 | 60 | ||||||||
| 212-39 | 2-3/8 | ||||||||
